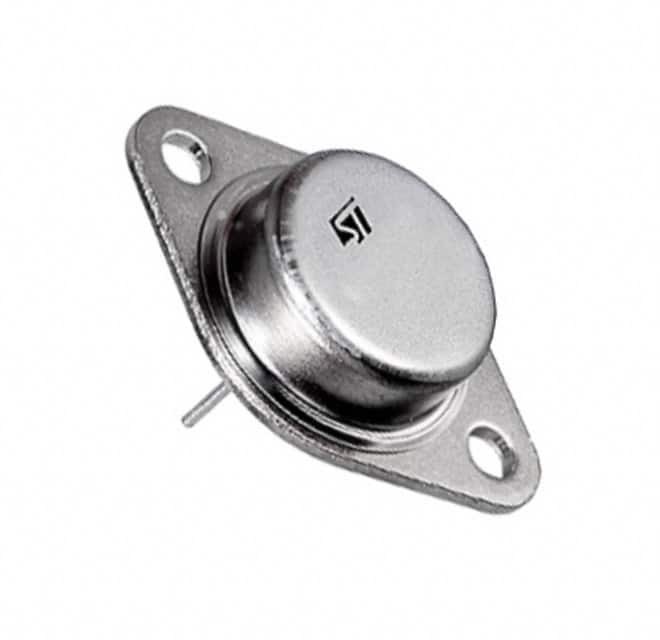

LM350K

SKU: 97178

Manufacturer: STMicroelectronics

Standard Regulator Pos 1.2V to 25V 3A 3-Pin(2+Tab) TO-3 Bag

290 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Standard
Number of Outputs	1
Polarity	Positive
Output Type	Adjustable
Output Voltage (V)	1.2 to 25
Maximum Output Current (A)	3
Reference Voltage (V)	1.29
Line Regulation	0.03%/V
Load Regulation	0.5%
Maximum Power Dissipation (mW)	30000
Junction to Ambient	35°C/W
Junction to Case	1.5°C/W
Special Features	Thermal Protection
Operating Temperature-Min	0
Operating Temperature-Max	125
Packing Method	Bag
Original Package	TO-3
Pin Count	3
Standard Package Method	TO-204-AA
Terminal Form	Through Hole
Package Height	8.7(Max)
Package Length	39.5(Max)
Package Width	26.2(Max)
PCB changed	2
Tab	Tab
