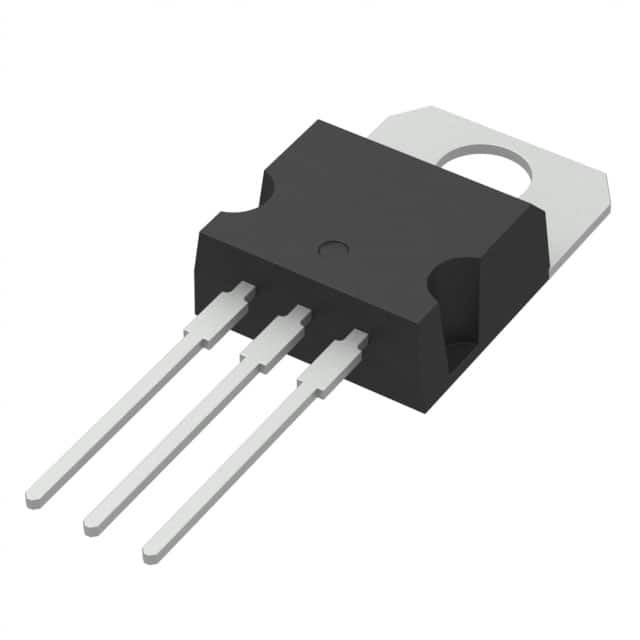

LM217T

SKU: 47703

Manufacturer: STMicroelectronics

Standard Regulator Pos 1.2V to 37V 0.4A 3-Pin(3+Tab) TO-220AB Tube

20250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Standard
Number of Outputs	1
Polarity	Positive
Output Type	Adjustable
Output Voltage (V)	1.2 to 37
Maximum Output Current (A)	0.4(Typ)
Reference Voltage (V)	1.3
Line Regulation	0.02%/V
Load Regulation	0.3%
Junction to Ambient	50°C/W
Junction to Case	5°C/W
Special Features	Thermal Shutdown Protection
Operating Temperature-Min	-25
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-220AB
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.15(Max)
Package Length	10.4(Max)
Package Width	4.6(Max)
PCB changed	3
Tab	Tab
