LF50CPT-TR

SKU: 139640

Manufacturer: STMicroelectronics

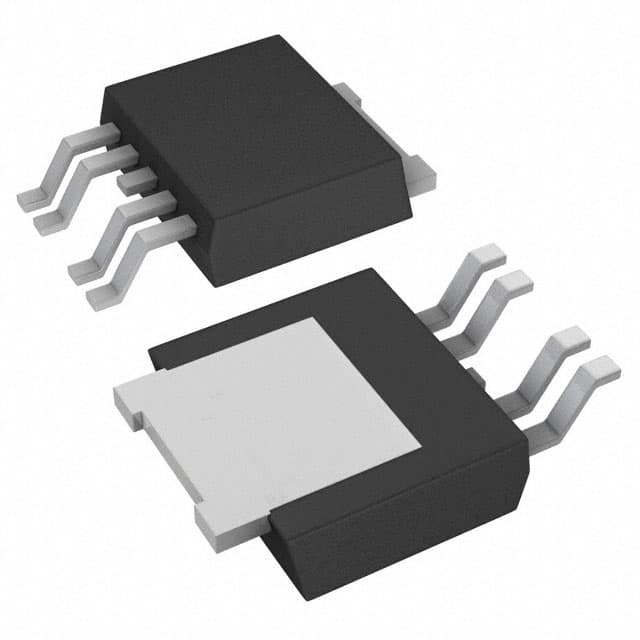

LDO Regulator Pos 5V 0.5A 5-Pin(4+Tab) PPAK T/R

96850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Fixed
Output Voltage (V)	5
Maximum Output Current (A)	0.5
Maximum Input Voltage (V)	16
Maximum Dropout Voltage @ Current (V)	0.35@200mA
Line Regulation	25mV
Load Regulation	25mV
Maximum Quiescent Current (mA)	1
Junction to Ambient	100°C/W
Junction to Case	8°C/W
Special Features	Thermal Protection
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	PPAK
Pin Count	5
Terminal Form	Surface Mount
Package Height	2.4(Max)
Package Length	6.6(Max)
Package Width	6.2(Max)
PCB changed	4
Tab	Tab
