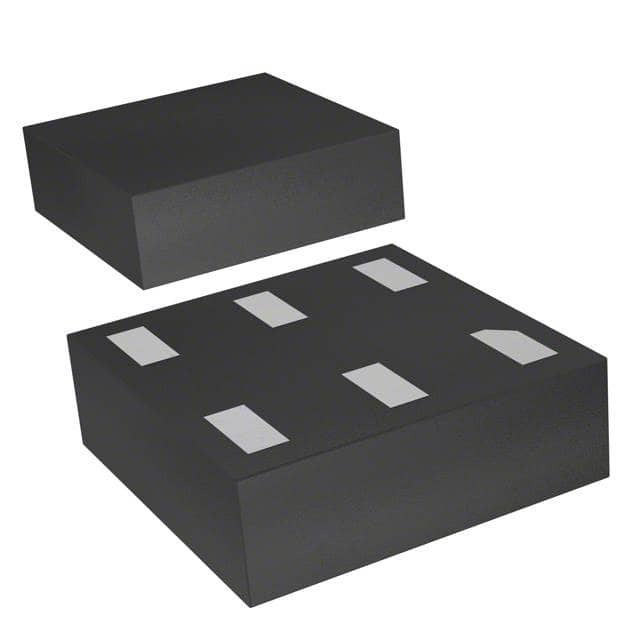

LDK130PU-R

SKU: 40524

Manufacturer: STMicroelectronics

LDO Regulator Pos 0.8V 0.3A 6-Pin DFN T/R

2200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Adjustable
Output Voltage (V)	0.8(Min)
Maximum Output Current (A)	0.3
Minimum Input Voltage (V)	1.9
Maximum Input Voltage (V)	5.5
Maximum Dropout Voltage @ Current (V)	0.4@300mA
Line Regulation	0.05%/V(Typ)
Load Regulation	0.006%/mA(Typ)
Maximum Quiescent Current (mA)	0.06
Junction to Ambient	237°C/W
Junction to Case	104°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	DFN
Pin Count	6
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.43
Package Length	1.2
Package Width	1.3
PCB changed	6
