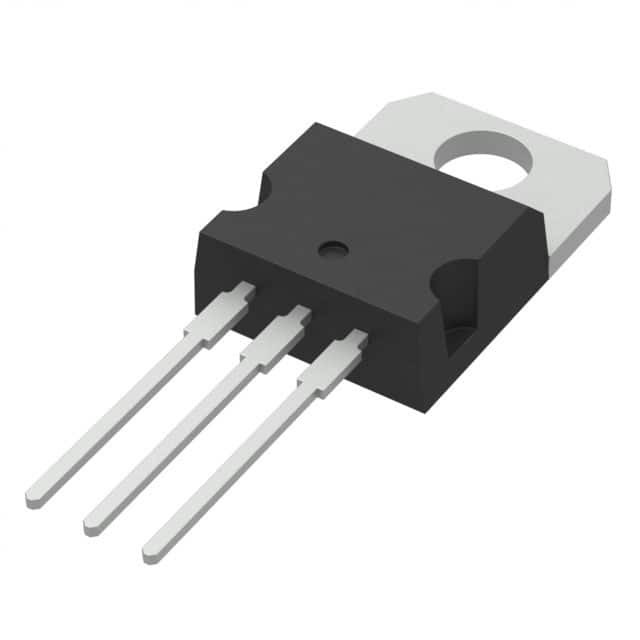

LD1117V33C-DG

SKU: 54789

Manufacturer: STMicroelectronics

LDO Regulator Pos 3.3V 1.3A 3-Pin(3+Tab) TO-220AB Tube

2660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Fixed
Output Voltage (V)	3.3
Maximum Output Current (A)	1.3
Maximum Input Voltage (V)	10
Maximum Dropout Voltage @ Current (V)	1.1@100mA
Line Regulation	30mV
Load Regulation	30mV
Maximum Quiescent Current (mA)	10
Maximum Power Dissipation (mW)	12000
Junction to Ambient	50°C/W
Junction to Case	5°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Original Package	TO-220AB
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.15(Max)
Package Length	10.4(Max)
Package Width	4.6(Max)
PCB changed	3
Tab	Tab
