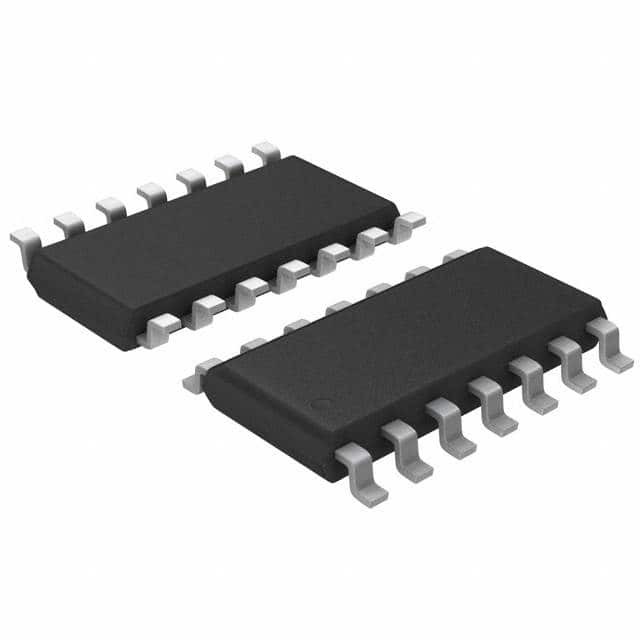

L6386AD

SKU: 132460

Manufacturer: STMicroelectronics

Driver 600V 0.65A 2-OUT High and Low Side Non-Inv 14-Pin SOIC Tube

690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	High and Low Side
Driver Configuration	Non-Inverting
Number of Drivers	2
High and Low Sides Dependency	Independent
Type	IGBT
Number of Outputs	2
Maximum Rise Time (ns)	50(Typ)
Maximum Fall Time (ns)	30(Typ)
Maximum Operating Frequency (kHz)	400
Input Logic Compatibility	CMOS
Operating Supply Voltage-Max (V)	17
Typical Input Low Threshold Voltage (V)	1.5(Max)
Typical Input High Threshold Voltage (V)	3.6(Min)
Reference Voltage (V)	600(Max)
Peak Output Current (A)	0.65
Maximum Power Dissipation (mW)	750
Operating Temperature-Min	-45
Operating Temperature-Max	125
Maximum Turn-On Delay Time (ns)	150
Maximum Turn-Off Delay Time (ns)	150
Packing Method	Tube
Pin Count	14
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	1.65(Max)
Package Length	8.75(Max)
Package Width	4(Max)
PCB changed	14
