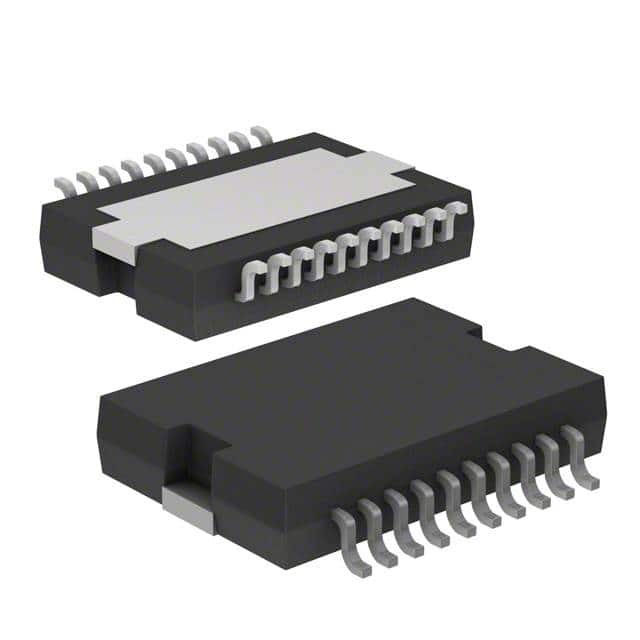

L6205PD

SKU: 61755

Manufacturer: STMicroelectronics

Full Bridge Motor Driver 48V 20-Pin PowerSO Tube

900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Motor Driver
Motor Type	Stepper Motor
Process Technology	DMOS
Control Interface	PWM
Output Configuration	Full Bridge
Operating Supply Voltage-Min (V)	8
Operating Supply Voltage (V)	8 to 52
Typical Operating Supply Voltage (V)	48
Operating Supply Voltage-Max (V)	52
Shutdown Threshold (V)	6
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tube
Pin Count	20
Standard Package Method	PowerSO
Original Package	PowerSO
Terminal Form	Surface Mount
Package Height	3.3(Max)
Package Length	16(Max)
Package Width	11.1(Max)
