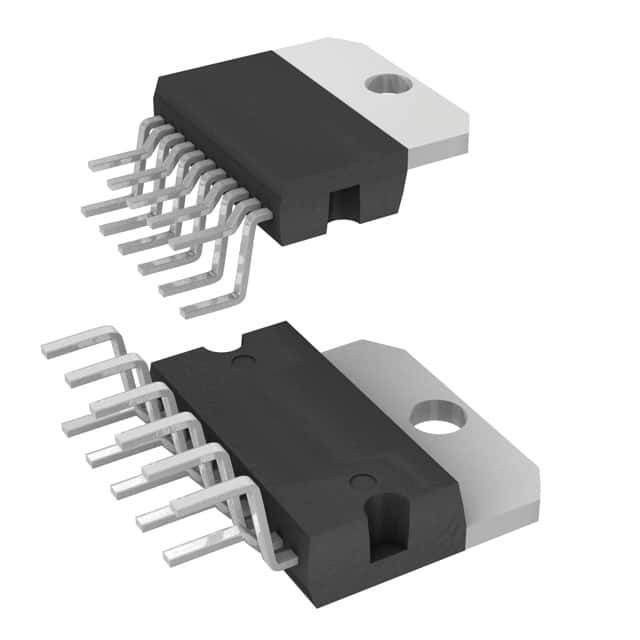

L6203

SKU: 54727

Manufacturer: STMicroelectronics

Full Bridge Motor Driver 36V 11-Pin(11+Tab) MULTIWATT V Tube

16620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Motor Driver
Motor Type	Stepper Motor
Process Technology	CMOS
Control Interface	INx/Enx
Output Configuration	Full Bridge
Output Voltage (V)	60(Max)
Maximum Output Current (A)	1
Maximum Peak Output Current (A)	5
Operating Supply Voltage-Min (V)	12
Operating Supply Voltage (V)	12 to 48
Typical Operating Supply Voltage (V)	36
Operating Supply Voltage-Max (V)	48
Maximum Operating Current (mA)	15
Maximum Power Dissipation (mW)	2300
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tube
Pin Count	11
Standard Package Method	MULTIWATT V
Original Package	MULTIWATT V
Terminal Form	Through Hole
Package Height	10.7
Package Length	19.6(Min)
Package Width	5(Max)
PCB changed	11
Tab	Tab
