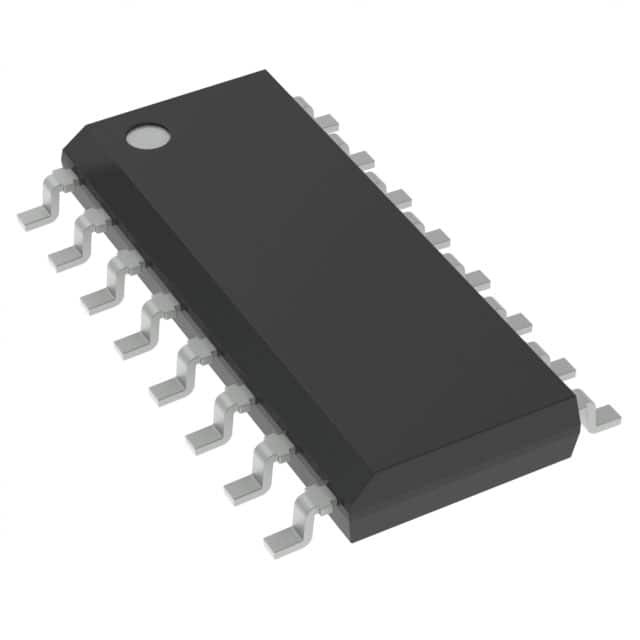

L5991AD

SKU: 89869

Manufacturer: STMicroelectronics

Current Mode PWM Controller 1.5A 1000kHz 16-Pin SO Tube

3290 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Current Mode PWM Controller
Control Method	Current Mode PWM Controller
Topology	Boost
Number of PWM Outputs	1
Oscillator Accuracy (kHz)	100
Switching Frequency (kHz)	1000
Maximum Duty Cycle (%)	93(Min)
Rise Time (ns)	70
Output Current (mA)	1500(Max)
Fall Time (ns)	35
Operating Supply Voltage-Min (V)	12
Operating Supply Voltage-Max (V)	20
Maximum Supply Current (mA)	13
Maximum Power Dissipation (mW)	830
Adjustable Output	No
On/Off Pin	No
Synchronous Pin	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	150
Supplier Temperature Grade	Extended Industrial
Packing Method	Tube
Original Package	SO
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.65(Max)
Package Length	10(Max)
Package Width	4(Max)
PCB changed	16
