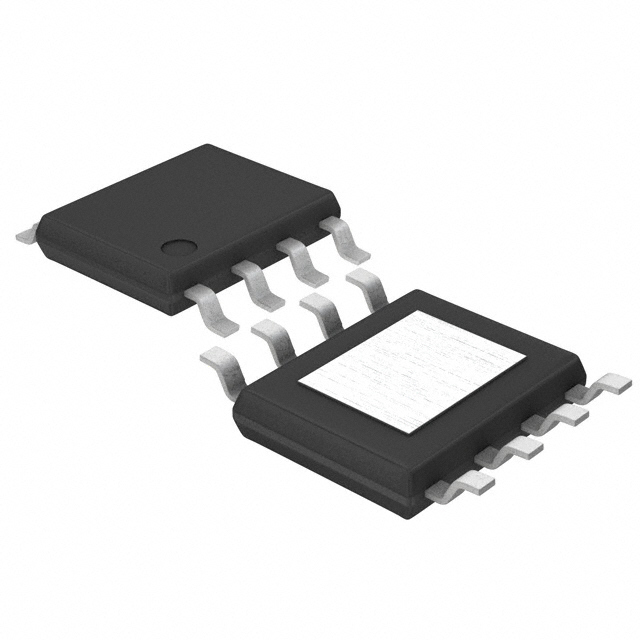

L5987A

SKU: 61752

Manufacturer: STMicroelectronics

Conv DC-DC 2.9V to 18V Synchronous Step Down Single-Out 0.6V to 18V 3A 8-Pin HSOP EP Tube

3010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	225 to 275
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.6 to 18
Maximum Output Current (A)	3(Typ)
Minimum Input Voltage (V)	2.9
Maximum Input Voltage (V)	18
Typical Quiescent Current (uA)	2400(Max)
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tube
Pin Count	8
Standard Package Method	SOP
Original Package	HSOP EP
Terminal Form	Surface Mount
Package Height	1.25(Min)
Package Length	4.9
Package Width	3.9
PCB changed	8
