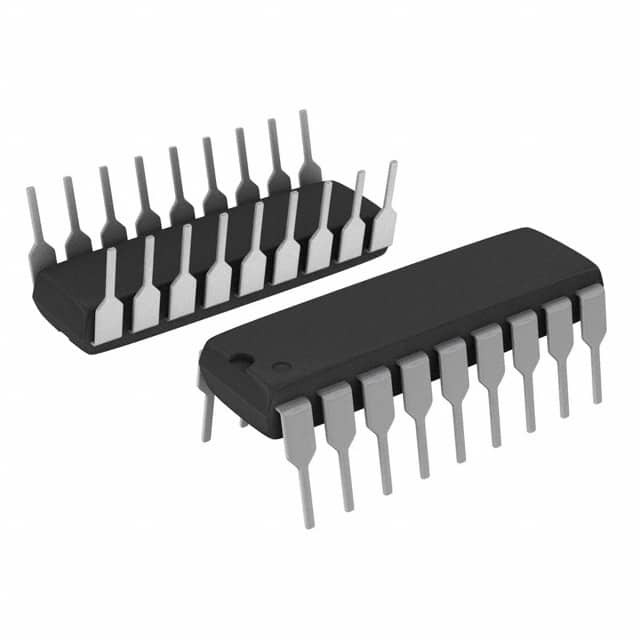

L4973V5.1

SKU: 26210

Manufacturer: STMicroelectronics

Conv DC-DC 8V to 55V Step Down Single-Out 5.1V to 50V 3.5A 18-Pin PDIP Tube

60410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Step Down
Output Type	Adjustable
Switching Frequency (kHz)	300
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	5.1 to 50
Maximum Output Current (A)	3.5
Minimum Input Voltage (V)	8
Maximum Input Voltage (V)	55
Operating Supply Voltage (V)	8 to 55
Typical Quiescent Current (uA)	4000
Line Regulation	10mV
Load Regulation	25mV
Efficiency (%)	90(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tube
Original Package	PDIP
Pin Count	18
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	5.1(Max) - 0.51(Min)
Package Length	24.8(Max)
Package Width	7.1(Max)
PCB changed	18
