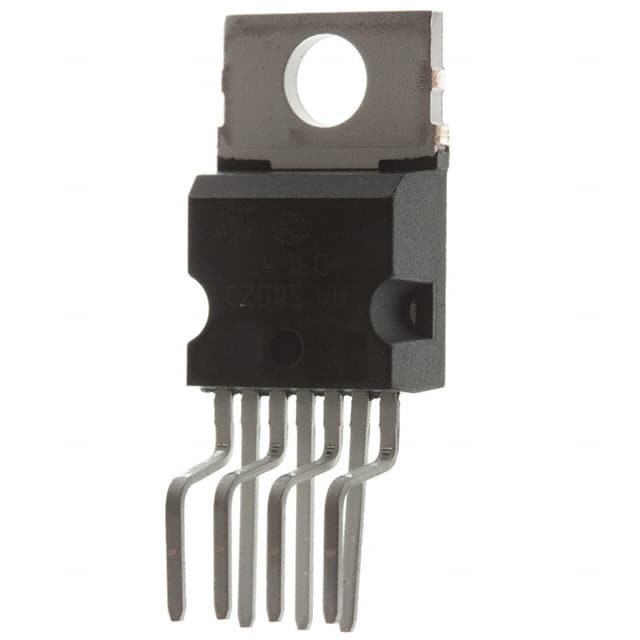

L4960

SKU: 33324

Manufacturer: STMicroelectronics

Conv DC-DC 9V to 46V Step Down Single-Out 5.1V to 40V 2.5A 7-Pin(7+Tab) HEPTAWATT V Tube

15140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Step Down
Output Type	Adjustable
Switching Frequency (kHz)	150(Typ)
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	5.1 to 40
Maximum Output Current (A)	2.5(Min)
Minimum Input Voltage (V)	9
Maximum Input Voltage (V)	46
Operating Supply Voltage (V)	9 to 46
Typical Quiescent Current (uA)	30000
Line Regulation	50mV
Load Regulation	30mV
Efficiency (%)	90
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tube
Original Package	HEPTAWATT V
Pin Count	7
Standard Package Method	HEPTAWATT
Terminal Form	Through Hole
Package Height	4.8(Max)
Package Length	10.4(Max)
Package Width	9.2(Max)
PCB changed	7
Tab	Tab
