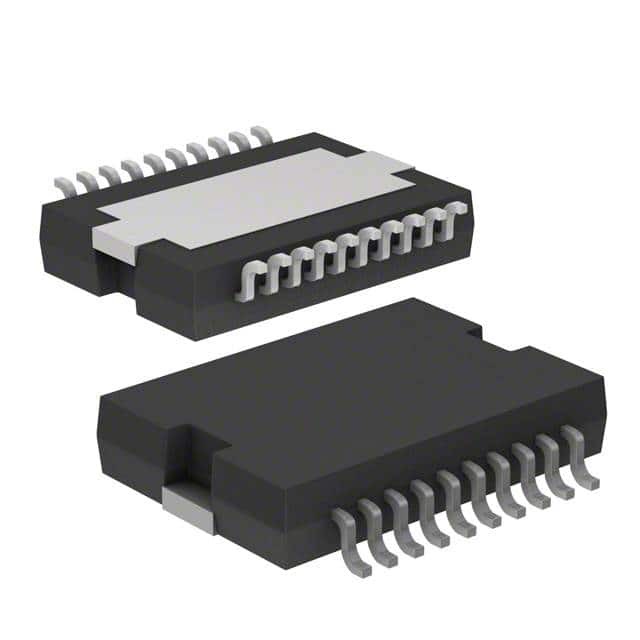

L298P

SKU: 146553

Manufacturer: STMicroelectronics

Dual Full Bridge Motor Driver 20-Pin PowerSO Tube

38670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Motor Driver
Motor Type	Stepper Motor
Output Configuration	Dual Full Bridge
Maximum Peak Output Current (A)	3
Operating Supply Voltage-Min (V)	4.8
Operating Supply Voltage (V)	4.8 to 46
Operating Supply Voltage-Max (V)	46
Maximum Power Dissipation (mW)	25000
Operating Temperature-Min	-25
Operating Temperature-Max	130
Packing Method	Tube
Original Package	PowerSO
Pin Count	20
Standard Package Method	PowerSO
Terminal Form	Surface Mount
Package Height	3.3(Max)
Package Length	16(Max)
Package Width	11.1(Max)
