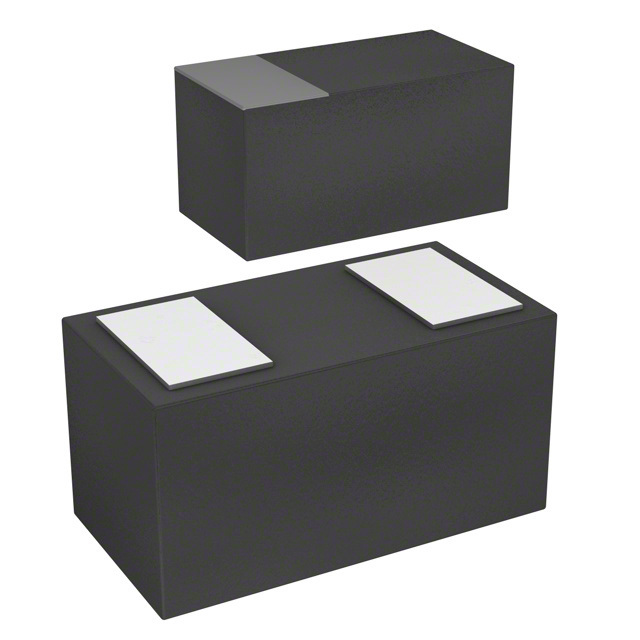

ESDAXLC6-1BU2K

SKU: 110739

Manufacturer: STMicroelectronics

ESD Suppressor Diode TVS Bi-Dir 3V 2-Pin DFN T/R

2490 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	TVS
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Maximum Working Voltage (V)	3
Minimum Breakdown Voltage (V)	6
Maximum Clamping Voltage (V)	19
Maximum Peak Pulse Current (A)	1
Maximum Leakage Current (uA)	0.07
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	30
Capacitance Value (pF)	0.35
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	DFN
Pin Count	2
Terminal Form	Surface Mount
Package Height	0.28
Package Length	0.6
Package Width	0.3
