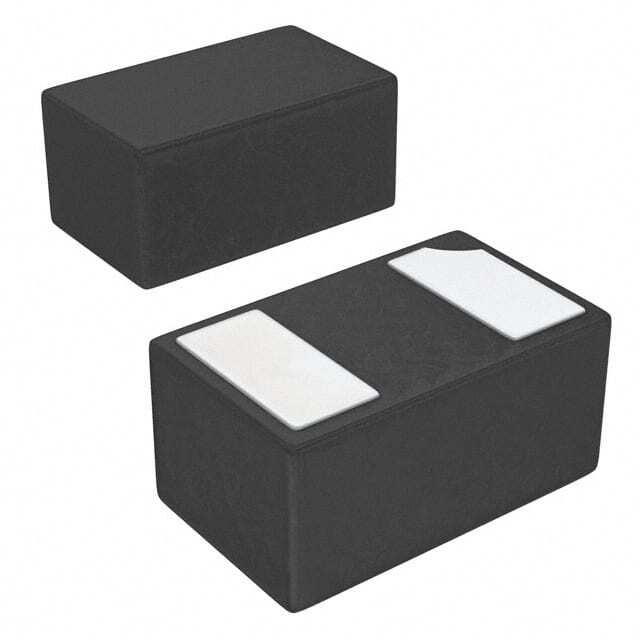

ESDA7P60-1U1M

SKU: 40065

Manufacturer: STMicroelectronics

ESD Suppressor Diode TVS Uni-Dir 5V 2-Pin Case 1610 T/R

1000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	TVS
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Maximum Working Voltage (V)	5
Minimum Breakdown Voltage (V)	6.4
Maximum Breakdown Voltage (V)	7.2
Maximum Clamping Voltage (V)	11.6
Maximum Peak Pulse Current (A)	60
Maximum Leakage Current (uA)	0.2
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	700
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	Case 1610
Pin Count	2
Terminal Form	Surface Mount
Package Height	0.53
Package Length	1.6
Package Width	1
