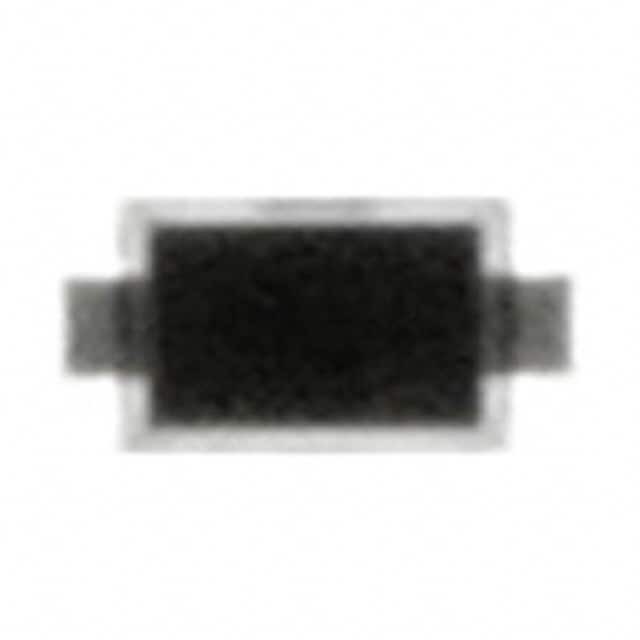

ESDA18-1K

SKU: 117827

Manufacturer: STMicroelectronics

ESD Suppressor Diode TVS Uni-Dir 15V 2-Pin SOD-523 T/R

10680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	TVS
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Maximum Working Voltage (V)	15
Maximum Clamping Voltage (V)	34
Maximum Leakage Current (uA)	0.5
Peak Pulse Power Dissipation (W)	400
Capacitance Value (pF)	105
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	2
Standard Package Method	SOD
Original Package	SOD-523
Terminal Form	Surface Mount
Package Height	0.6
Package Length	1.2
Package Width	0.8
PCB changed	2
