BZW06-342B

SKU: 150484

Manufacturer: STMicroelectronics

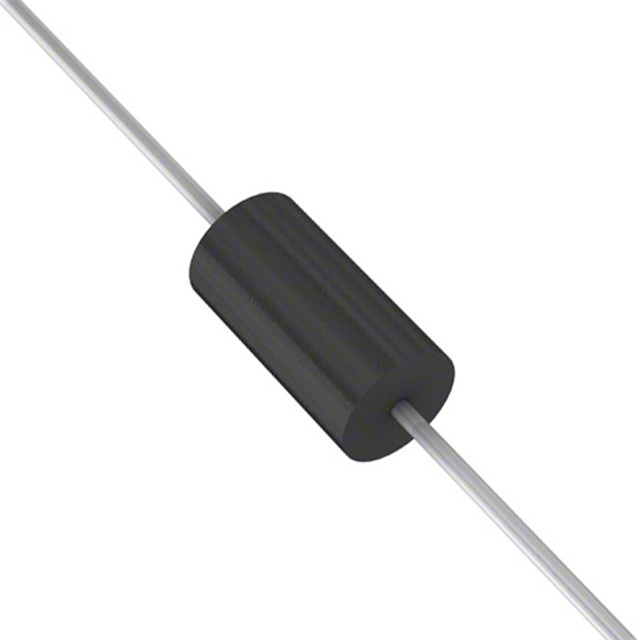

TVS Diode Single Bi-Dir 342V 600W 2-Pin DO-15 T/R

2260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	380
Maximum Clamping Voltage (V)	706
Maximum Reverse Stand-Off Voltage (V)	342
Maximum Peak Pulse Current (A)	5.7
Maximum Reverse Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	600
Operating Temperature-Min	-65
Operating Temperature-Max	175
Packing Method	Tape and Reel
Original Package	DO-15
Pin Count	2
Standard Package Method	DO-204-AC
Diameter	3.53(Max)
Terminal Form	Through Hole
Package Length	6.75(Max)
PCB changed	2
