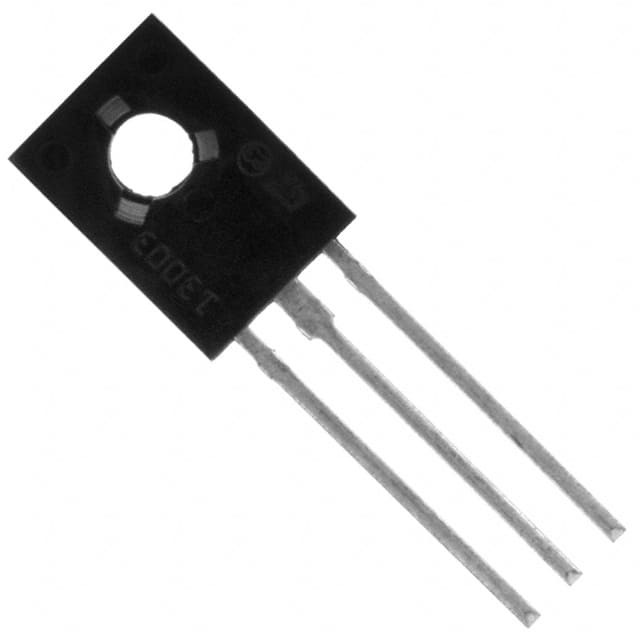

BD436

SKU: 67660

Manufacturer: STMicroelectronics

Trans GP BJT PNP 32V 4A 36000mW 3-Pin(3+Tab) SOT-32 Tube

498190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Power
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	32
Collector-Emitter Voltage-Max (V)	32
Maximum Emitter Base Voltage (V)	5
Maximum Collector-Emitter Saturation Voltage (V)	0.5@0.2A@2A
Maximum DC Collector Current (A)	4
Maximum Collector Cut-Off Current (nA)	100000
Minimum DC Current Gain	40@10mA@5V
Maximum Power Dissipation (mW)	36000
Maximum Transition Frequency (MHz)	3(Min)
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tube
Original Package	SOT-32
Pin Count	3
Standard Package Method	TO-126
Terminal Form	Through Hole
Package Height	10.8(Max)
Package Length	7.8(Max)
Package Width	2.7(Max)
PCB changed	3
Tab	Tab
