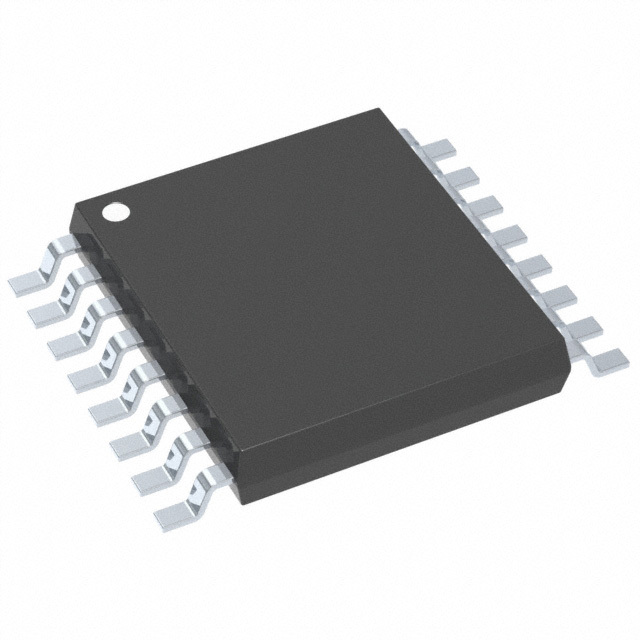

A6986F

SKU: 137741

Manufacturer: STMicroelectronics

Conv DC-DC 4V to 38V Synchronous Step Down Single-Out 0.85V to 38V 1.5A Automotive 16-Pin HTSSOP EP Tube

2920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	250 to 2000
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.85 to 38
Maximum Output Current (A)	1.5
Minimum Input Voltage (V)	4
Maximum Input Voltage (V)	38
Maximum Low Level Output Voltage (V)	0.6
Maximum High Level Output Voltage (V)	1.4(Min)
Operating Supply Voltage (V)	4 to 38
Typical Switch Current (A)	1.8
Typical Quiescent Current (uA)	30
Operating Temperature-Min	-40
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tube
Original Package	HTSSOP EP
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1
Package Length	5
Package Width	4.4
