2STBN15D100

SKU: 100491

Manufacturer: STMicroelectronics

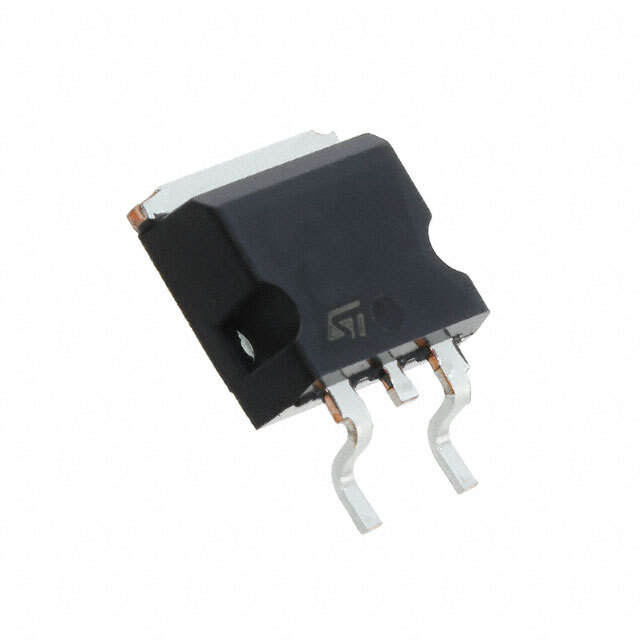

Trans Darlington NPN 100V 12A 70000mW 3-Pin(2+Tab) D2PAK T/R

1970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	NPN
Configuration	Single
Number of Elements per pcs	1
Collector-Emitter Voltage-Max (V)	100
Collector Base Voltage-Max (V)	100
Maximum Emitter Base Voltage (V)	5
Maximum Continuous DC Collector Current (A)	12
Maximum Collector Cut-Off Current (uA)	100
Maximum Collector-Emitter Saturation Voltage (V)	1.5@1mA@0.5A
Minimum DC Current Gain	750@3A@3V
Maximum Power Dissipation (mW)	70000
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	3
Standard Package Method	TO-263
Original Package	D2PAK
Terminal Form	Surface Mount
Package Height	4.6(Max)
Package Length	10.4(Max)
Package Width	9.35(Max)
PCB changed	2
