BRPG1204W-TR

SKU: 124233

Manufacturer: Stanley Electric Co., Ltd

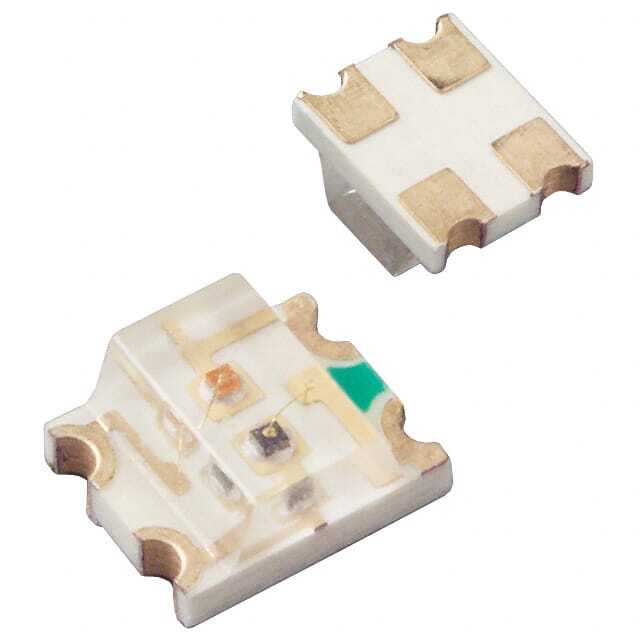

LED Bi-Color Green/Red 560nm/660nm 4-Pin SMD T/R

6130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Bi-Color
Product Category	Chip LED
Color	Green/Red
Number of LEDs	2
LED Body Material	GaAlAs
Lens Shape Type	Circular
Lens Appearance	Colorless Non Diffused
Mounting Orientation	Top Mount
Intensity	33.6mcd
Dominant Wavelength (nm)	567/647
Peak Wavelength (nm)	560/660
Viewing Angle (°)	80
Maximum Forward Current (mA)	30
Test Current (mA)	20
Maximum Forward Voltage (V)	2.5/2
Reverse Voltage (V)	4
Maximum Power Dissipation (mW)	75
Operating Temperature-Min	-30
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Lead Standoff	No
Supplier Color	Green/Red
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Original Package	SMD
Pin Count	4
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Height	1.5
Package Length	3
Package Width	2.5
