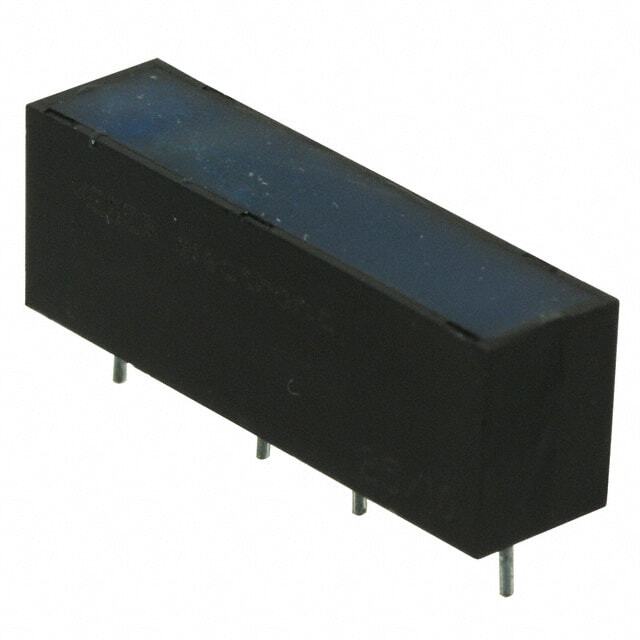

SIL24-1A72-71L

SKU: 66359

Manufacturer: Standex Electronics, Inc

Reed Relay 24VDC 2KOhm 1A SPST-NO(19.8x5.08x7.8)mm THT Dry

1090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.49.00.50
Automotive	No
PPAP	No
Type	Dry
Contact Arrangement	SPST-NO
DC Coil Voltage (V)	24
Coil Current (mA)	12
Coil Resistance (Ohm)	2K
Maximum Contact Resistance (mOhm)	150
Insulation Resistance (Ohm)	10T(Min)
Maximum Pick-Up Voltage	16.8VDC
Maximum AC Switching Voltage (V)	200
Maximum DC Switching Voltage (V)	200
Maximum Switching Current (A)	1
Minimum Dropout Voltage	3.6VDC
Maximum Carry Current (A)	1.25
Isolation Across Contacts	250VDC(Min)
Isolation Across Coil and Contacts	1.5KVDC(Min)
Maximum Switching Power	15W
Operate Time (ms)	0.5
Release Time (ms)	0.1
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	4
Relay Construction	Non-Latching
Seal	Sealed
Operating Temperature-Min	-20
Operating Temperature-Max	70
Package Type	SIP
Packing Method	Tube
Product Weight (g)	1.6
Length (mm)	19.8
Depth (mm)	5.08
