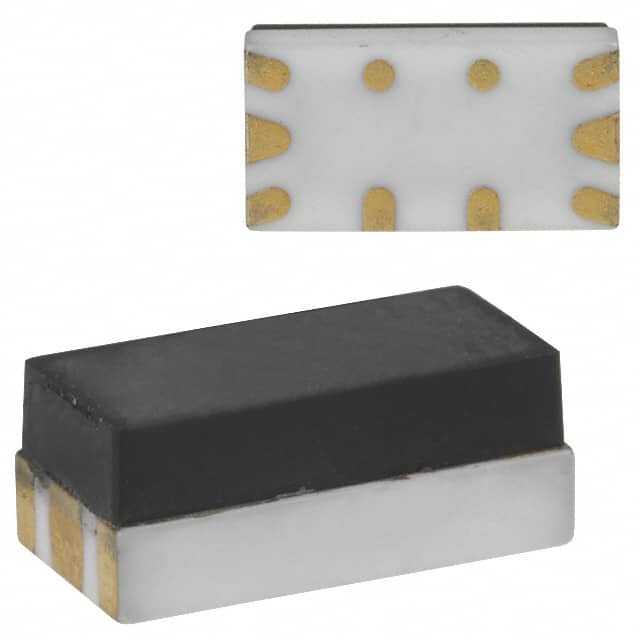

CRR05-1A

SKU: 18444

Manufacturer: Standex Electronics, Inc

Reed Relay 5VDC 150Ohm 0.5A SPST-NO( (8.6mm 4.4mm 3.55mm)) SMD Dry

1620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.60
Automotive	No
PPAP	No
Type	Dry
Contact Arrangement	SPST-NO
DC Coil Voltage (V)	5
Coil Current (mA)	33.3
Coil Resistance (Ohm)	150
Maximum Contact Resistance (mOhm)	200
Insulation Resistance (Ohm)	1G(Min)
Maximum Pick-Up Voltage	3.75VDC
Maximum AC Switching Voltage (V)	170
Maximum DC Switching Voltage (V)	170
Maximum Switching Current (A)	0.5
Minimum Dropout Voltage	0.75VDC
Maximum Carry Current (A)	1
Isolation Across Contacts	210VDC(Min)
Isolation Across Coil and Contacts	1.5KVDC(Min)
Maximum Switching Power	10W
Operate Time (ms)	0.6
Release Time (ms)	0.05
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Terminal Form	Surface Mount
Number of Terminals	10
Relay Construction	Non-Latching
Seal	Sealed
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Product Weight (g)	0.37
Length (mm)	8.6
Depth (mm)	4.4
