SMV1281-079LF

SKU: 73395

Manufacturer: Skyworks Solutions

Diode VAR Cap Single 24V 7.8pF 2-Pin SC-79 T/R

2160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.70
Type	VCO
Configuration	Single
Maximum Reverse Voltage (V)	24
Maximum Reverse Current (uA)	0.02
Minimum Tuning Ratio	12(Typ)
Tuning Ratio Test Condition	1V/20V
Minimum Diode Capacitance (pF)	7.8@1V
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel

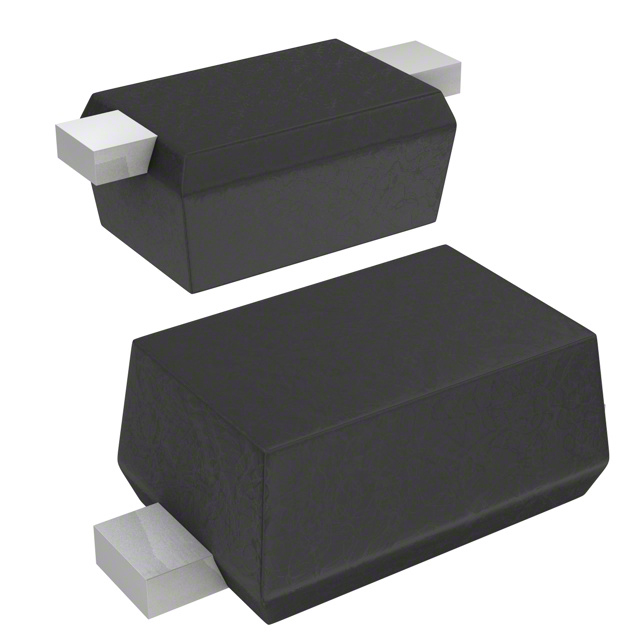

Original Package	SC-79
Pin Count	2
Standard Package Method	SOD-523
Terminal Form	Surface Mount
Package Height	0.7(Max)
Package Length	1.3(Max)
Package Width	0.9(Max)
PCB changed	2
