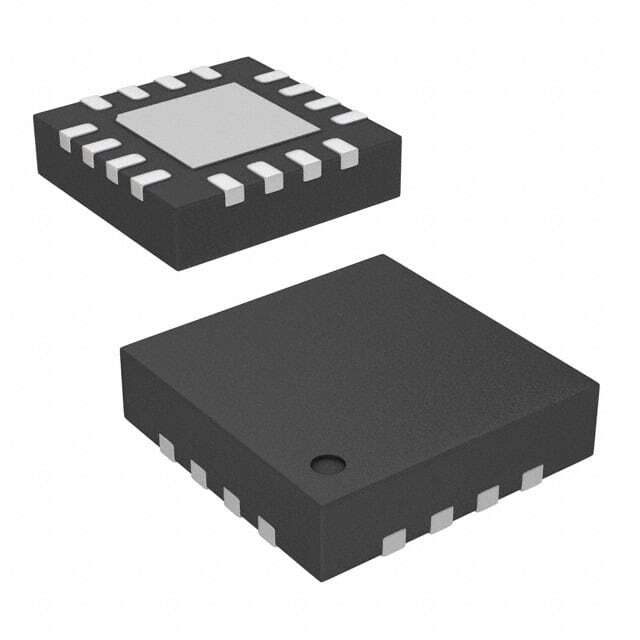

SKY13286-359LF

SKU: 35615

Manufacturer: Skyworks Solutions

RF Switch SPDT 100MHz to 6GHz 40dB 16-Pin QFN EP T/R

890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
Switch Type	SPDT
Switch Configuration	Single SPDT
Number of Switches	3
Frequency Band (MHz)	100 to 6000
Maximum Frequency (MHz)	6000
Minimum Isolation Voltage (dB)	40
Maximum Insertion Loss (dB)	1.8
Typical Input 1dB Compressed Power (dBm)	30
Technology	GaAs pHEMT
Operating Supply Voltage-Min (V)	2.7
Operating Supply Voltage-Max (V)	5.5
High Control Voltage (V)	2.7 to 5.5
Typical Supply Current (mA)	0.1
Operating Temperature-Min	-40
Operating Temperature-Max	95
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	16
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.88
Package Length	4
Package Width	4
PCB changed	16
