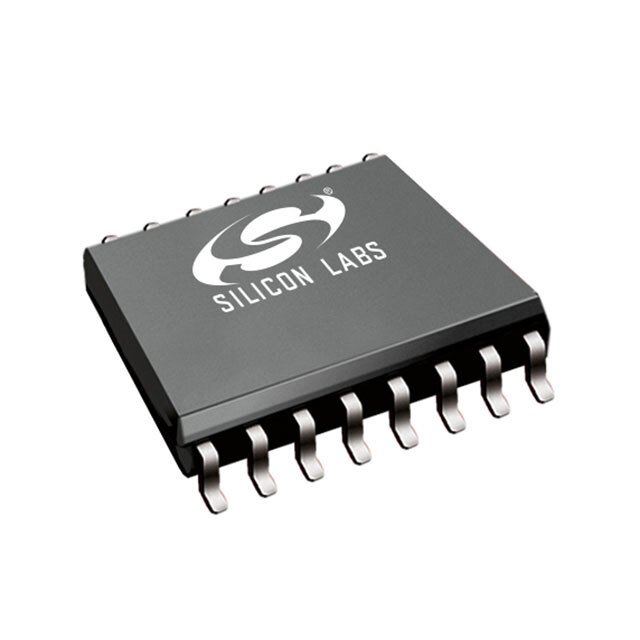

SI8663BD-B-ISR

SKU: 120492

Manufacturer: Skyworks Solutions

Digital Isolator CMOS 6-CH 150Mbps 16-Pin SOIC W T/R

3580 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	General Purpose
Number of Channels per Chip	6
Maximum Data Rate	150Mbps
Maximum Rise Time (ns)	4
Maximum Fall Time (ns)	4
Minimum Pulse Width (ns)	5
Maximum Pulse Width Distortion (ns)	4.5
Maximum Propagation Delay Skew (ns)	4.5
Output Type	CMOS
Operating Supply Voltage-Max (V)	5.5
Operating Supply Voltage-Min (V)	2.375
Maximum Propagation Delay Time (tPHL) (ns)	13
Minimum Isolation Voltage (Vrms)	5000
Maximum Propagation Delay Time (tPLH) (ns)	13
Maximum Working Insulation Voltage	1200Vp
Maximum Quiescent Supply Current (mA)	9.1/9.1
Maximum Output Current Drive (mA)	10
Maximum Power Dissipation (mW)	415
Operating Temperature-Min	-40
Operating Temperature-Max	125
Forward/Reverse Channels	3/3
Minimum Common Mode Rejection (kV/us)	35
Supplier Temperature Grade	Industrial
Coupling Type	Capacitive Coupling
Original Package	SOIC W
Pin Count	16
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	10.3
Package Width	7.5
