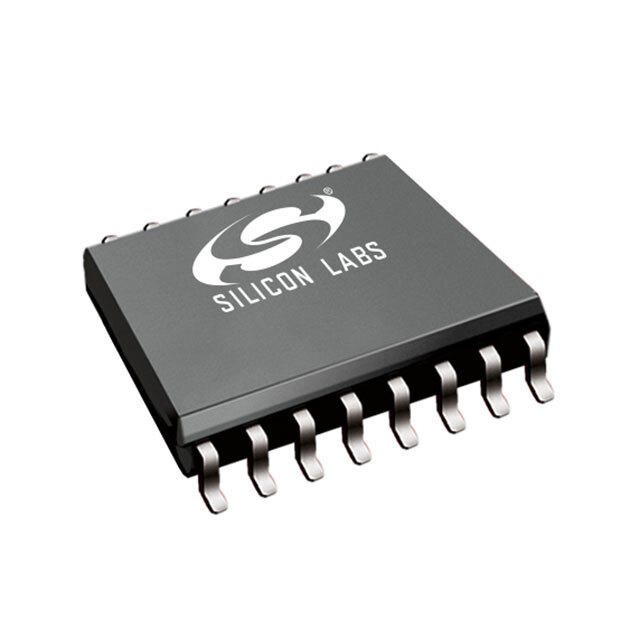

SI8631BD-B-IS

SKU: 30971

Manufacturer: Skyworks Solutions

Digital Isolator CMOS 3-CH 150Mbps 16-Pin SOIC W

2180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Type	General Purpose
Number of Channels per Chip	3
Maximum Data Rate	150Mbps
Maximum Rise Time (ns)	4
Maximum Fall Time (ns)	4
Minimum Pulse Width (ns)	5
Maximum Pulse Width Distortion (ns)	4.5
Maximum Propagation Delay Skew (ns)	5
Output Type	CMOS
Operating Supply Voltage-Max (V)	5.5
Operating Supply Voltage-Min (V)	2.5
Maximum Propagation Delay Time (tPHL) (ns)	14
Minimum Isolation Voltage (Vrms)	5000
Maximum Propagation Delay Time (tPLH) (ns)	13
Maximum Working Insulation Voltage	1200Vp
Maximum Quiescent Supply Current (mA)	8.8/13.4
Maximum Output Current Drive (mA)	10
Maximum Power Dissipation (mW)	275
Operating Temperature-Min	-40
Operating Temperature-Max	125
Typical Operating Supply Voltage (V)	3.3
Forward/Reverse Channels	2/1
Minimum Common Mode Rejection (kV/us)	35
Coupling Type	Capacitive Coupling
Original Package	SOIC W
Pin Count	16
Terminal Form	Surface Mount
Package Height	2.05(Min)
Package Length	10.3
Package Width	7.5
