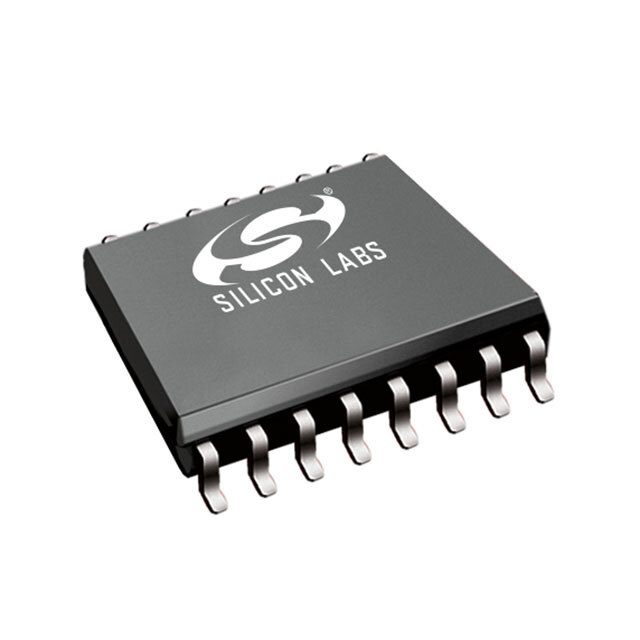

SI8600AD-B-ISR

SKU: 45212

Manufacturer: Skyworks Solutions

Digital Isolator Open Drain 2-CH 1.7MHZ 16-Pin SOIC W T/R

3990 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	I2C
Number of Channels per Chip	2
Maximum Data Rate	1.7MHZ
Maximum Rise Time (ns)	4
Maximum Fall Time (ns)	4
Minimum Pulse Width (ns)	40
Maximum Pulse Width Distortion (ns)	12
Maximum Propagation Delay Skew (ns)	10
Output Type	Open Drain
Operating Supply Voltage-Max (V)	5.5
Operating Supply Voltage-Min (V)	3
Maximum Propagation Delay Time (tPHL) (ns)	20
Minimum Isolation Voltage (Vrms)	5000
Maximum Propagation Delay Time (tPLH) (ns)	20
Maximum Working Insulation Voltage	1200Vp
Maximum Quiescent Supply Current (mA)	7.6/6.5
Maximum Output Current Drive (mA)	10
Maximum Power Dissipation (mW)	275000
Operating Temperature-Min	-40
Operating Temperature-Max	125
Forward/Reverse Channels	2/0
Minimum Common Mode Rejection (kV/us)	35
Coupling Type	Capacitive Coupling
Original Package	SOIC W
Pin Count	16
Terminal Form	Surface Mount
Package Height	2.05(Min)
Package Length	10.3
Package Width	7.5
