SI8462BA-B-IS1

SKU: 80413

Manufacturer: Skyworks Solutions

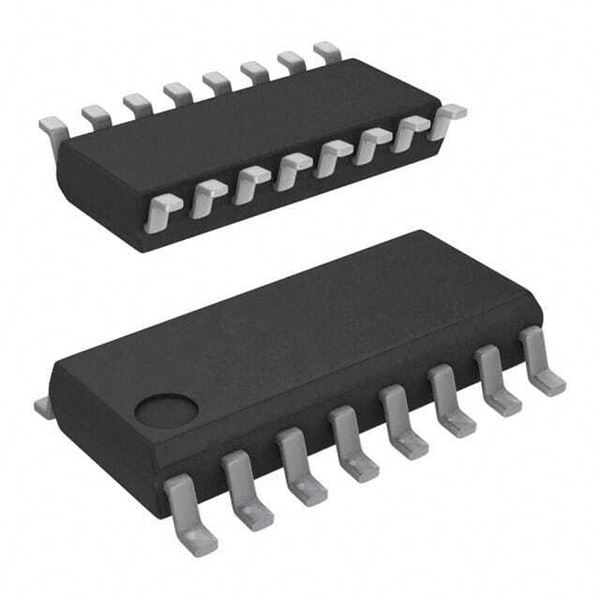

Digital Isolator CMOS 6-CH 150Mbps Automotive 16-Pin SOIC N

220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
Automotive	Unknown
PPAP	Unknown
Type	General Purpose
Number of Channels per Chip	6
Maximum Data Rate	150Mbps
Maximum Rise Time (ns)	6.5
Maximum Fall Time (ns)	4.6
Minimum Pulse Width (ns)	250
Maximum Pulse Width Distortion (ns)	2.5
Maximum Propagation Delay Skew (ns)	40
Output Type	CMOS
Operating Supply Voltage-Max (V)	5.5
Operating Supply Voltage-Min (V)	2.7
Maximum Propagation Delay Time (tPHL) (ns)	35
Minimum Isolation Voltage (Vrms)	1000
Maximum Propagation Delay Time (tPLH) (ns)	9.5
Maximum Working Insulation Voltage	560Vp
Maximum Quiescent Supply Current (mA)	10.9/15.3
Maximum Output Current Drive (mA)	10
Maximum Power Dissipation (mW)	415
Operating Temperature-Min	-40
Operating Temperature-Max	125
Typical Operating Supply Voltage (V)	5
Forward/Reverse Channels	4/2
Minimum Common Mode Rejection (kV/us)	25(Typ)
Coupling Type	Capacitive Coupling
Original Package	SOIC N
Pin Count	16
Terminal Form	Surface Mount
Package Height	1.25(Min)
Package Length	9.9
Package Width	3.9
