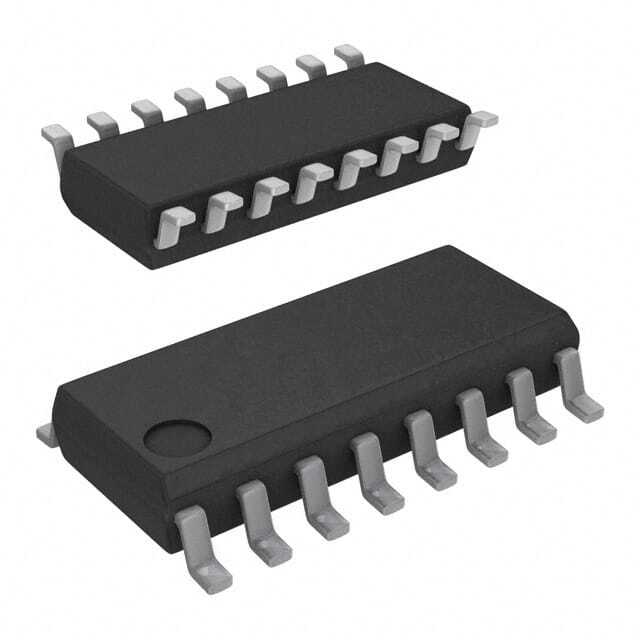

SI8234BB-D-IS1R

SKU: 14345

Manufacturer: Skyworks Solutions

Optocoupler Drive 2-CH 24V 1500V 16-Pin SOIC N T/R

8170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Number of Channels per Chip	2
Minimum Isolation Voltage (Vrms)	2500
Minimum Common Mode Rejection (kV/us)	20
Maximum Rise Time (ns)	20
Maximum Fall Time (ns)	20
Maximum Propagation Delay Time (tPLH) (ns)	45
Maximum Propagation Delay Time (tPHL) (ns)	45
Maximum Pulse Width Distortion (ns)	5.6
Maximum Peak Output Current (A)	4
Common Mode Voltage (V)	1500
Operating Supply Voltage-Max (V)	24
Maximum Working Insulation Voltage (Vp)	560
Maximum Power Dissipation (mW)	1200
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Standard Package Method	SOP
Original Package	SOIC N
Pin Count	16
Terminal Form	Surface Mount
Package Height	1.25(Min)
Package Length	9.9
Package Width	3.9
