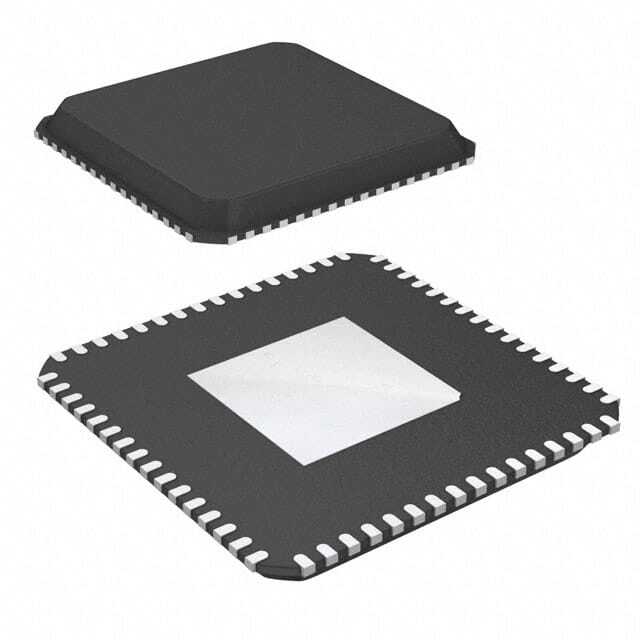

SI5341B-D-GM

SKU: 106222

Manufacturer: Skyworks Solutions

Clock Generator 10MHz to 750MHz-IN 350MHz-OUT 64-Pin QFN EP

760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
Automotive	No
PPAP	No
Number of Outputs per Chip	10
Clock Input Frequency (MHz)	10 to 750
Maximum Output Frequency (MHz)	350
Typical Duty Cycle (%)	60(Max)
Input Logic Level	Crystal
Output Logic Level	CML
Operating Supply Voltage-Min (V)	1.71/3.14
Typical Operating Supply Voltage (V)	1.8/3.3
Operating Supply Voltage-Max (V)	1.89/3.47
Maximum Power Dissipation (mW)	1150
Operating Temperature-Min	-40
Operating Temperature-Max	85
Maximum Supply Current (mA)	230
Original Package	QFN EP
Pin Count	64
Terminal Form	Surface Mount
Package Height	0.83
Package Length	9
Package Width	9
