AS179-92LF

SKU: 152381

Manufacturer: Skyworks Solutions

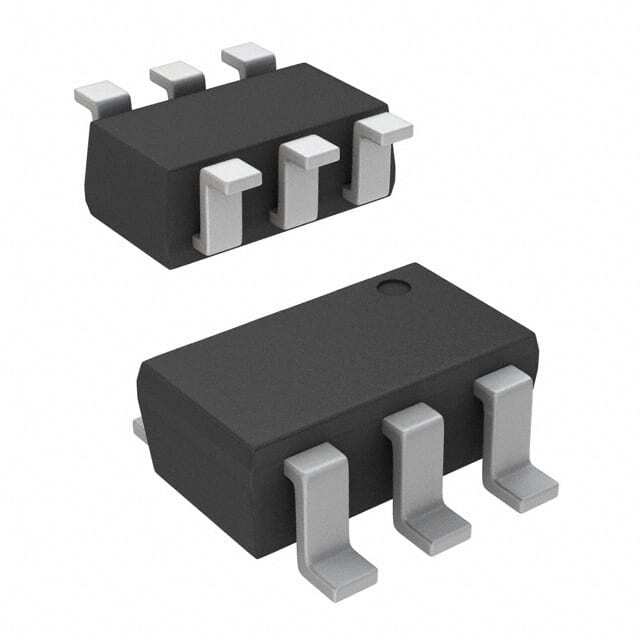

RF Switch SPDT 0.02MHz to 4GHz 20dB Automotive 6-Pin SC-88 T/R

13990 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Switch Type	SPDT
Switch Configuration	Single SPDT
Number of Switches	1
Switching Speed (ns)	10(Typ)
Frequency Band (MHz)	0.02 to 4000
Maximum Frequency (MHz)	4000
Minimum Isolation Voltage (dB)	20
Maximum Insertion Loss (dB)	0.7
Typical Input 1dB Compressed Power (dBm)	34
Technology	GaAs pHEMT
High Control Voltage (V)	2 to 5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SC-88
Pin Count	6
Standard Package Method	SC
Terminal Form	Surface Mount
Package Height	0.9
Package Length	2
Package Width	1.25
