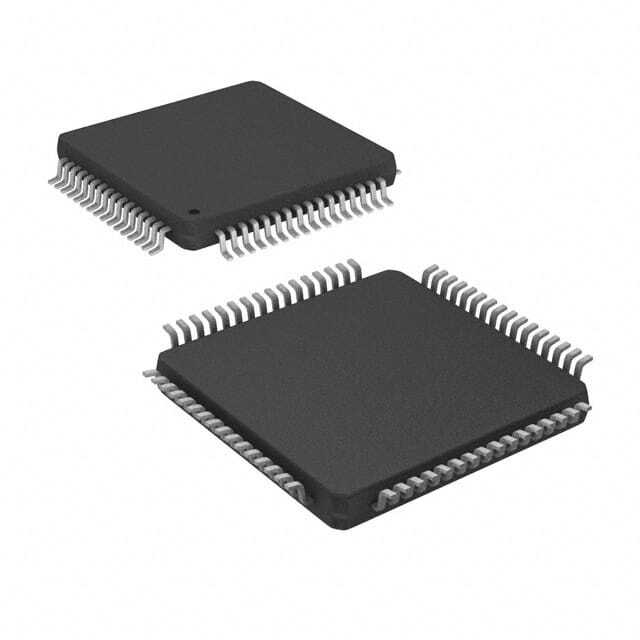

SIM3U146-B-GQ

SKU: 115825

Manufacturer: Silicon Labs

ARM Cortex-32-bit 80 MHz 64 kB USB EMIF MCU

1360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992.c
Part Status	LTB
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	SiM3U1xx
Instruction Set Architecture	RISC
Device Core	ARM Cortex M3
Core Architecture	ARM
Maximum CPU Frequency (MHz)	80
Maximum Clock Rate (MHz)	80
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	64KB
RAM Size	16KB
Maximum Expanded Memory Size	16MB
Programmability	Yes
Interface Type	I2C/I2S/SPI/UART/USART/USB
Number of I/Os	50
No. of Timers	3
PWM	1
Number of ADCs	Dual
ADC Channels	13/15
ADC Resolution (bit)	12/12
Number of DACs	Single
DAC Channels	2
DAC Resolution (bit)	10
USART	2
UART	2
USB	1
SPI	3
I2C	2
I2S	1
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	Yes
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.6
Maximum Power Dissipation (mW)	650
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	TQFP
Pin Count	64
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1
Package Length	10
Package Width	10
PCB changed	64
