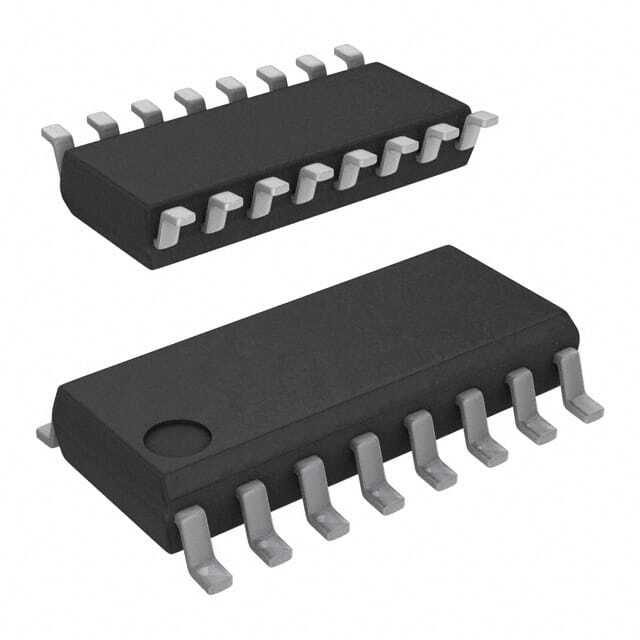

SI82394AB4-IS1

SKU: 66343

Manufacturer: Silicon Labs

Optocoupler Drive 1-CH 5.5V 1500V Automotive 16-Pin SOIC N Tube

1020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	2500
Minimum Common Mode Rejection (kV/us)	35
Maximum Rise Time (ns)	12
Maximum Fall Time (ns)	12
Maximum Propagation Delay Time (tPLH) (ns)	40
Maximum Propagation Delay Time (tPHL) (ns)	40
Maximum Pulse Width Distortion (ns)	5.6
Maximum Peak Output Current (A)	4
Common Mode Voltage (V)	1500
Operating Supply Voltage-Max (V)	5.5
Maximum Working Insulation Voltage (Vp)	560
Maximum Power Dissipation (mW)	1200
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tube
Original Package	SOIC N
Pin Count	16
Terminal Form	Surface Mount
Package Height	1.25(Min)
Package Length	9.9
Package Width	3.9
