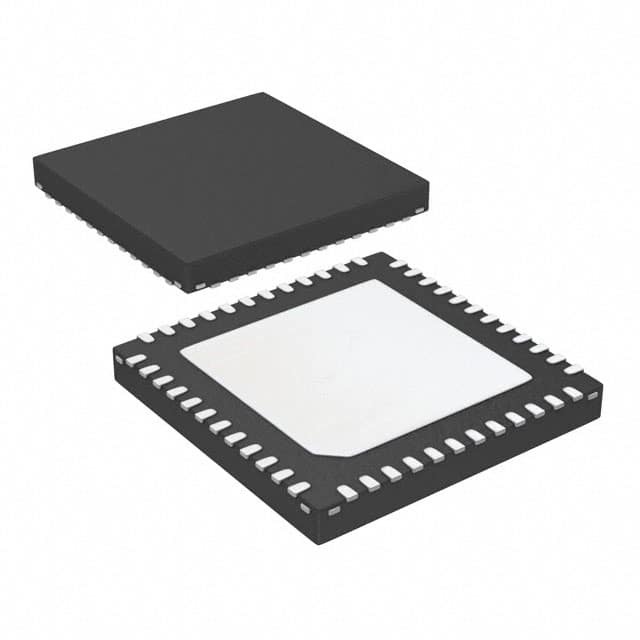

EM3588-RTR

SKU: 32859

Manufacturer: Silicon Labs

ZigBee/802.15.4--512 kB flash+64 kB RAM+USB

3550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992c.
Part Status	NRND
HTS	8542.31.00.01
Automotive	No
PPAP	No
Module/IC Classification	Module
Modulation Technique	OQPSK
RAM Size (KB)	64
Flash Size (KB)	512
Maximum Data Rate (Kbps)	12000
Maximum Operating Frequency (MHz)	2400(Typ)
Typical Sensitivity	-102dBm
Protocol Stack	802.15.4/ZigBee
Interface	GPIO/SPI/UART/USB/JTAG
Maximum Output Power	8dBm(Typ)
Operating Supply Voltage-Min (V)	2.1
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	QFN
Original Package	QFN EP
Pin Count	48
Terminal Form	Surface Mount
Package Height	0.82
Package Length	7
Package Width	7
PCB changed	48
