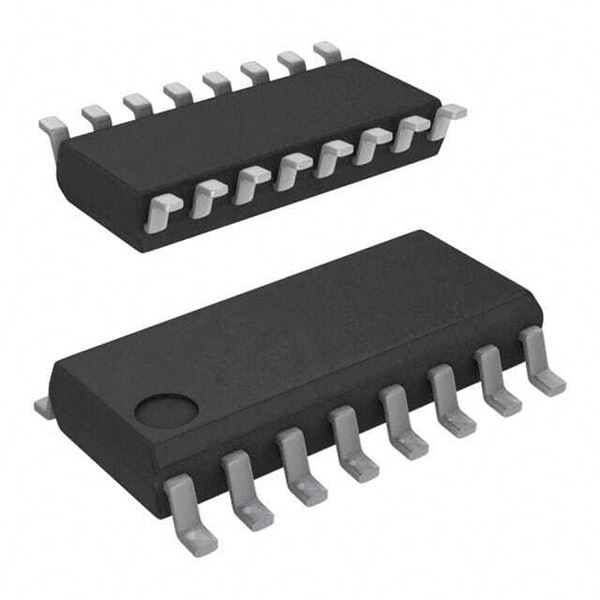

EFM8BB10F8G-A-SOIC16

SKU: 25766

Manufacturer: Silicon Labs

8051 25 MHz 8 kB flash 0.5 kB RAM 8-bit Busy Bee MCU

1770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3B991a.
Part Status	Active
HTS	8542.31.00.01
Automotive	Yes
PPAP	No
Family Name	EFM8
Instruction Set Architecture	CISC
Device Core	8051
Core Architecture	8051
Maximum CPU Frequency (MHz)	25
Maximum Clock Rate (MHz)	25
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	8KB
RAM Size	512B
Programmability	Yes
Interface Type	I2C/SMBus/SPI/UART
Number of I/Os	13
No. of Timers	4
Timers Resolution (bit)	16/16/16/16
PWM	3
Number of ADCs	Single
ADC Channels	12
ADC Resolution (bit)	12
USART	0
UART	1
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	2.2
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Pin Count	16
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	1.25(Min)
Package Length	9.9
Package Width	3.9
PCB changed	16
