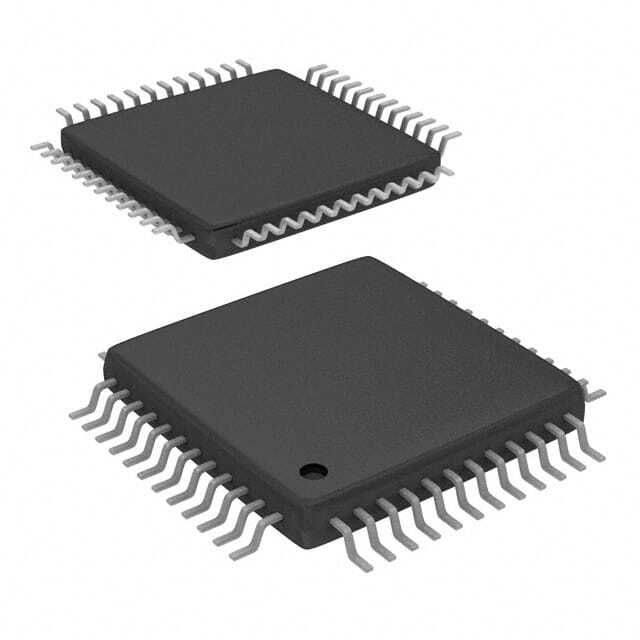

EFM32TG11B340F64GQ48-A

SKU: 108036

Manufacturer: Silicon Labs

MCU 32-bit ARM Cortex M0+ RISC 64KB Flash 3.3V 48-Pin TQFP Tray

1570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992C
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	EFM32
Instruction Set Architecture	RISC
Device Core	ARM Cortex M0+
Core Architecture	ARM
Maximum CPU Frequency (MHz)	48
Maximum Clock Rate (MHz)	48
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	64KB
RAM Size	32KB
Programmability	Yes
Interface Type	CAN/I2C/UART/USART
Number of I/Os	37
No. of Timers	6
Number of ADCs	Single
ADC Resolution (bit)	12
Number of DACs	Dual
DAC Channels	2
DAC Resolution (bit)	12/12
USART	4
UART	2
USB	0
SPI	0
I2C	2
I2S	0
CAN	1
Ethernet	0
Watchdog	1
Analog Comparators	2
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.8
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	TQFP
Pin Count	48
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Length	7
Package Width	7
PCB changed	48
