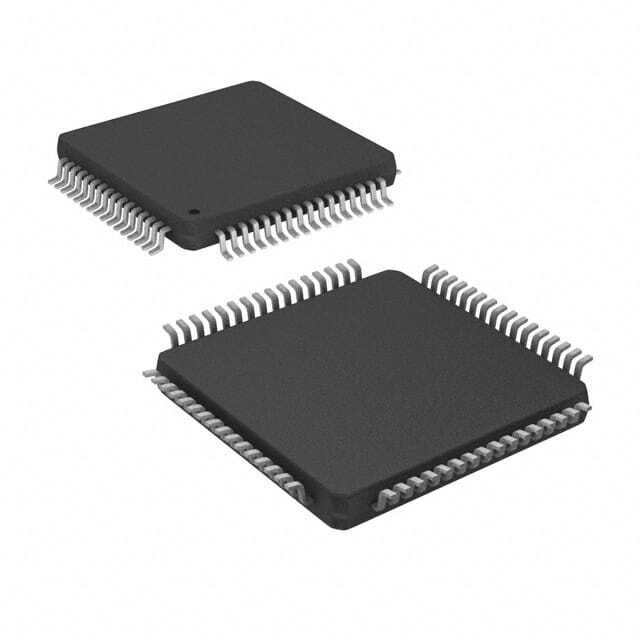

EFM32GG942F1024G-E-QFP64

SKU: 103514

Manufacturer: Silicon Labs

ARM Cortex-M3 32-bit 48 MHz 1024 kB USB LCD MCU

3600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992C
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	EFM32
Instruction Set Architecture	RISC
Device Core	ARM Cortex M3
Core Architecture	ARM
Maximum CPU Frequency (MHz)	48
Maximum Clock Rate (MHz)	48
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	1MB
RAM Size	128KB
Maximum Expanded Memory Size	1GB
Programmability	Yes
Interface Type	I2C/UART/USART/USB
Number of I/Os	50
No. of Timers	5
PWM	4
Number of ADCs	Single
ADC Channels	14
ADC Resolution (bit)	12
Number of DACs	Single
DAC Channels	3
DAC Resolution (bit)	12
LCD Segments	288
USART	3
UART	2
USB	2
SPI	0
I2C	2
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	Yes
Special Features	LCD Controller
Operating Supply Voltage-Min (V)	1.98
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.8
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	TQFP
Pin Count	64
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1
Package Length	10
Package Width	10
PCB changed	64
