EFM32GG11B520F2048IM64-B

SKU: 103511

Manufacturer: Silicon Labs

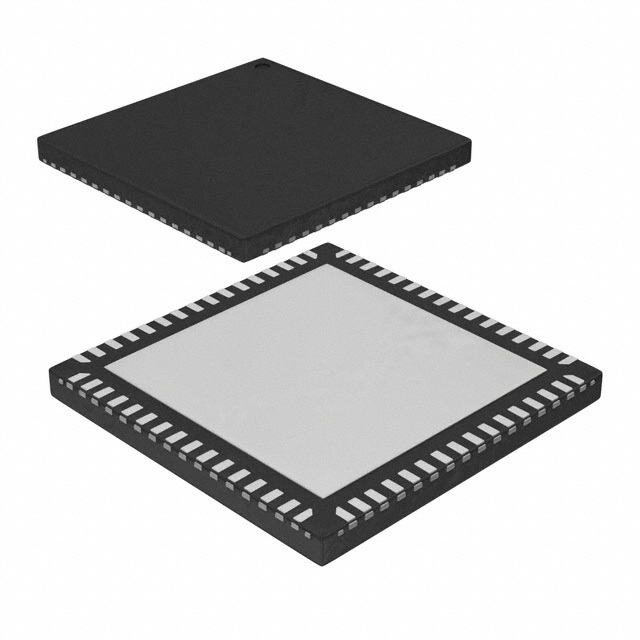

MCU 32-bit ARM Cortex M4 RISC 2MB Flash 3.3V 64-Pin QFN EP Tray

1230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992C
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	EFM32
Instruction Set Architecture	RISC
Device Core	ARM Cortex M4
Core Architecture	ARM
Maximum CPU Frequency (MHz)	72
Maximum Clock Rate (MHz)	72
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	2MB
RAM Size	512KB
Interface Type	CAN/I2C/UART/USART
Number of I/Os	53
No. of Timers	14
Number of ADCs	Dual
ADC Channels	16
ADC Resolution (bit)	12/12
Number of DACs	Dual
DAC Channels	2
DAC Resolution (bit)	12/12
USART	6
UART	4
USB	0
SPI	0
I2C	3
I2S	0
CAN	2
Ethernet	0
Watchdog	2
Analog Comparators	4
Real Time Clock	Yes
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.8
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tray
Original Package	QFN EP
Pin Count	64
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	9
Package Width	9
