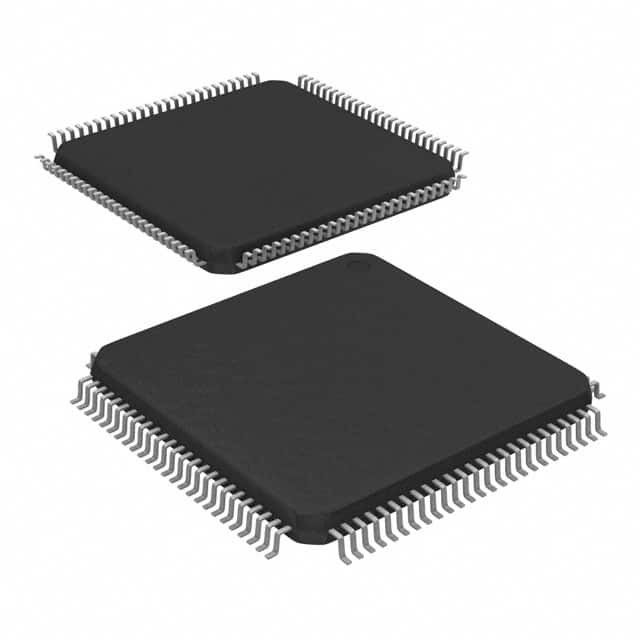

EFM32G280F128G-E-QFP100

SKU: 122294

Manufacturer: Silicon Labs

MCU 32-bit ARM Cortex M3 RISC 128KB Flash 2.5V/3.3V 100-Pin LQFP Tray

2790 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992.c
Part Status	Active
Automotive	No
PPAP	No
Family Name	EFM32
Instruction Set Architecture	RISC
Device Core	ARM Cortex M3
Core Architecture	ARM
Maximum CPU Frequency (MHz)	32
Maximum Clock Rate (MHz)	32
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	128KB
RAM Size	16KB
Maximum Expanded Memory Size	4MB
Interface Type	I2C/UART/USART
Number of I/Os	86
No. of Timers	4
PWM	3
Number of ADCs	Single
ADC Channels	12
ADC Resolution (bit)	12
Number of DACs	Single
DAC Channels	2
DAC Resolution (bit)	12
LCD Segments	160
USART	3
UART	3
USB	0
SPI	0
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	No
Special Features	LCD Controller
Operating Supply Voltage-Min (V)	1.98
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.8
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	LQFP
Pin Count	100
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	14
Package Width	14
PCB changed	100
