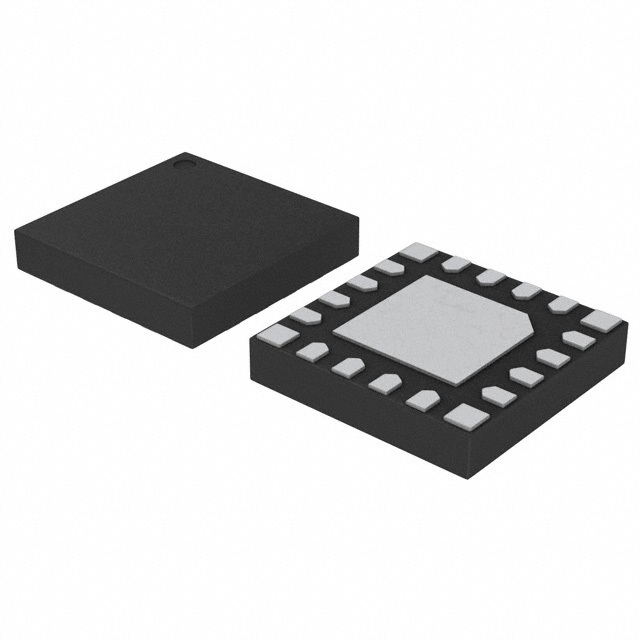

C8051F980-GMR

SKU: 74787

Manufacturer: Silicon Labs

MCU 8-bit 8051 CISC 8KB Flash 2.4V Automotive 20-Pin QFN EP T/R

610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8473.30.51.00
Automotive	Unknown
PPAP	Unknown
Family Name	C8051F98x
Instruction Set Architecture	CISC
Device Core	8051
Core Architecture	8051
Maximum CPU Frequency (MHz)	25
Maximum Clock Rate (MHz)	25
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	8KB
RAM Size	512B
Maximum Expanded Memory Size	64KB
Programmability	Yes
Interface Type	I2C/SMBus/SPI/UART
Number of I/Os	16
No. of Timers	4
PWM	2
Number of ADCs	Single
ADC Channels	9
ADC Resolution (bit)	12
USART	0
UART	1
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	1
Special Features	Programmable Counter Array
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	2.4
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	20
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.53
Package Length	3
Package Width	3
PCB changed	20
