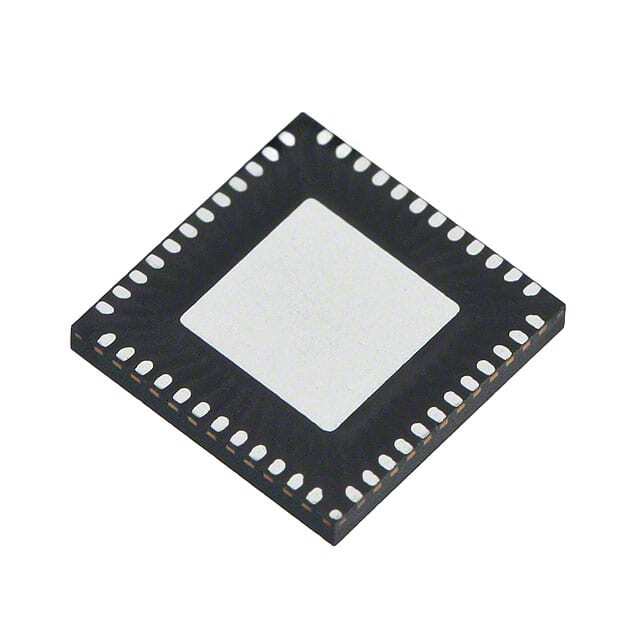

C8051F580-IM

SKU: 129186

Manufacturer: Silicon Labs

8051 50 MHz 128 kB 5 V CAN LIN 8-bit MCU

2140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.2
Part Status	Active
HTS	8542.31.00.01
Automotive	Yes
PPAP	No
Family Name	C8051F58x
Instruction Set Architecture	CISC
Device Core	8051
Core Architecture	8051
Maximum CPU Frequency (MHz)	50
Maximum Clock Rate (MHz)	50
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	128KB
RAM Size	8.25KB
Maximum Expanded Memory Size	64KB
Programmability	Yes
Interface Type	CAN/I2C/SMBus/SPI/UART
Number of I/Os	40
No. of Timers	6
Timers Resolution (bit)	16/16/16/16/16/16
PWM	4
Number of ADCs	Single
ADC Channels	32
ADC Resolution (bit)	12
USART	0
UART	2
USB	0
SPI	1
I2C	1
I2S	0
CAN	1
Ethernet	0
Watchdog	1
Analog Comparators	3
Parallel Master Port	No
Real Time Clock	No
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	5.25
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tube
Pin Count	48
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	7
Package Width	7
PCB changed	48
