C8051F537A-IT

SKU: 58578

Manufacturer: Silicon Labs

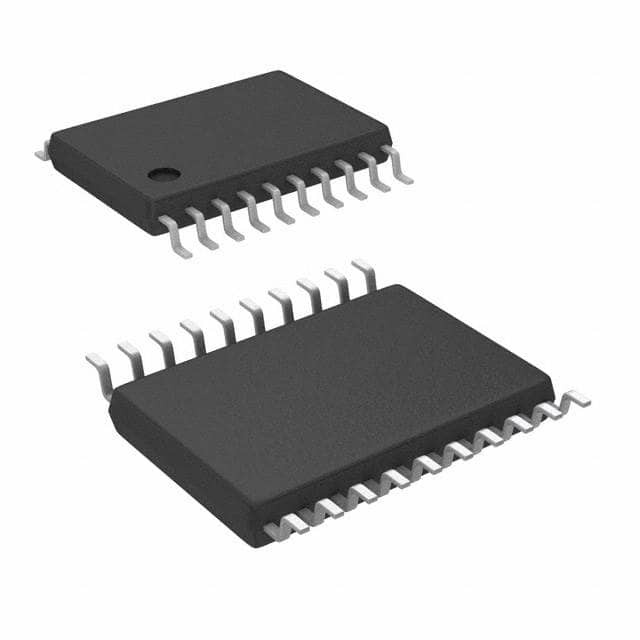

MCU 8-bit 8051 CISC 2KB Flash 2.5V/3.3V/5V Automotive 20-Pin TSSOP Tube

2080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991a.2.
Part Status	NRND
Automotive	Yes
PPAP	No
Family Name	C8051F53x
Instruction Set Architecture	CISC
Device Core	8051
Core Architecture	8051
Maximum CPU Frequency (MHz)	25
Maximum Clock Rate (MHz)	25
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	2KB
RAM Size	256B
Maximum Expanded Memory Size	64KB
Programmability	Yes
Interface Type	SPI/UART
Number of I/Os	16
No. of Timers	3
Timers Resolution (bit)	16/16/16
PWM	1
Number of ADCs	Single
ADC Channels	16
ADC Resolution (bit)	12
USART	0
UART	1
USB	0
SPI	1
I2C	0
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	1
Parallel Master Port	No
Real Time Clock	No
Special Features	Programmable Counter Array
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.25
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tube
Pin Count	20
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1
Package Length	6.5
Package Width	4.4
PCB changed	20
