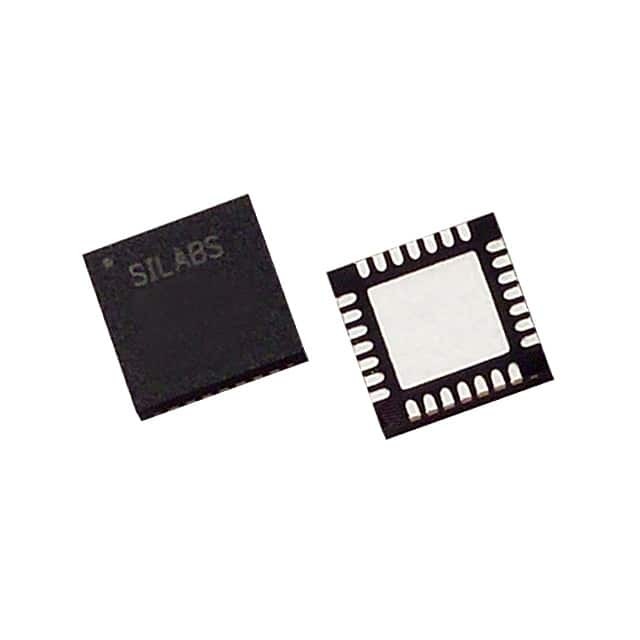

C8051F365-C-GM

SKU: 157613

Manufacturer: Silicon Labs

8051 100 MHz 32 kB MAC 8-bit MCU

2080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	C8051F36x
Instruction Set Architecture	CISC
Device Core	8051
Core Architecture	8051
Maximum CPU Frequency (MHz)	100
Maximum Clock Rate (MHz)	100
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	32KB
RAM Size	1KB
Maximum Expanded Memory Size	64KB
Programmability	Yes
Interface Type	SMBus/SPI/UART
Number of I/Os	25
No. of Timers	4
Timers Resolution (bit)	16/16/16/16
PWM	2
USART	0
UART	1
USB	0
SPI	1
I2C	0
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	Yes
Special Features	Programmable Counter Array
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tube
Original Package	QFN EP
Pin Count	28
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.83
Package Length	5
Package Width	5
PCB changed	28
