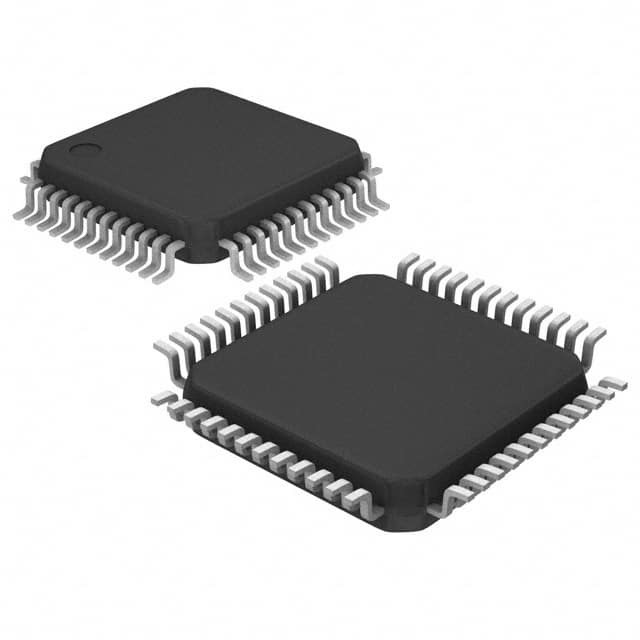

C8051F341-GQ

SKU: 103041

Manufacturer: Silicon Labs

8051 50 MHz 32 kB 8-bit MCU

2240 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	C8051F34x
Instruction Set Architecture	CISC
Device Core	8051
Core Architecture	8051
Maximum CPU Frequency (MHz)	48
Maximum Clock Rate (MHz)	48
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	32KB
RAM Size	2.25KB
Maximum Expanded Memory Size	64KB
Programmability	Yes
Interface Type	I2C/SMBus/SPI/UART/USB
Number of I/Os	40
No. of Timers	4
Timers Resolution (bit)	16/16/16/16
PWM	2
Number of ADCs	Single
ADC Channels	17
ADC Resolution (bit)	10
USART	0
UART	2
USB	1
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	No
Special Features	Programmable Counter Array
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.25
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Pin Count	48
Standard Package Method	QFP
Original Package	TQFP
Terminal Form	Surface Mount
Package Height	1
Package Length	7
Package Width	7
PCB changed	48
