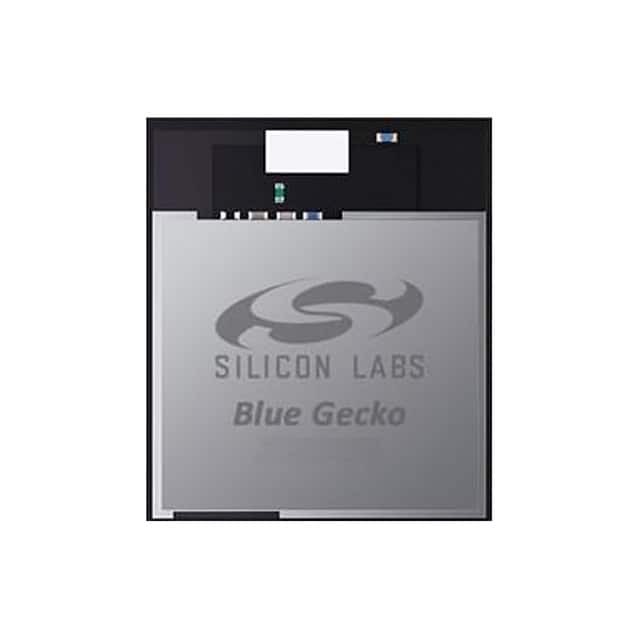

BGM13P22F512GE-V2R

SKU: 25146

Manufacturer: Silicon Labs

Bluetooth v5.0 (BLE) SMART SOC IoT 2Mbps 3.3V 31-Pin T/R

1980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992C
Part Status	Active
HTS	8517.62.00.90
Automotive	No
PPAP	No
Type	Module
Protocols Supported	Bluetooth v5.0 (BLE)
Processing Unit Type	Microprocessor
Maximum Data Rate (Mbps)	2
Minimum Operating Frequency (MHz)	2400
Maximum Operating Frequency (MHz)	2483.5
Typical Sensitivity (dBm)	-103.2
Interface Type	GPIO/I2C/SPI/UART
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.8
Antenna Terminal Form	External
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Special Features	IoT
Pin Count	31
Terminal Form	Surface Mount
Package Height	2
Package Length	15
Package Width	12.9
