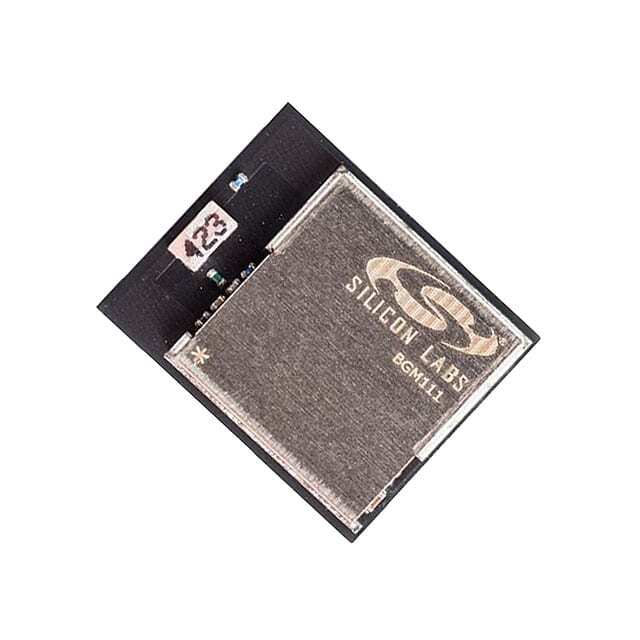

BGM111A256V2

SKU: 58538

Manufacturer: Silicon Labs

Bluetooth v4.2 (BLE) SMART SOC IoT 3.3V 31-Pin SMD Module Cut Tape

1290 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992C
Part Status	Active
HTS	8517.62.00.90
Automotive	No
PPAP	No
Type	Module
Protocols Supported	Bluetooth v4.2 (BLE)
Processing Unit Type	Microprocessor
Minimum Operating Frequency (MHz)	2400
Maximum Operating Frequency (MHz)	2483.5
Typical Sensitivity (dBm)	-92
Interface Type	I2C/UART
Operating Supply Voltage-Min (V)	1.85
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.8
Antenna Terminal Form	On Board
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Cut Tape
Special Features	IoT
Original Package	SMD Module
Pin Count	31
Terminal Form	Surface Mount
Package Height	2
Package Length	15
Package Width	12.9
