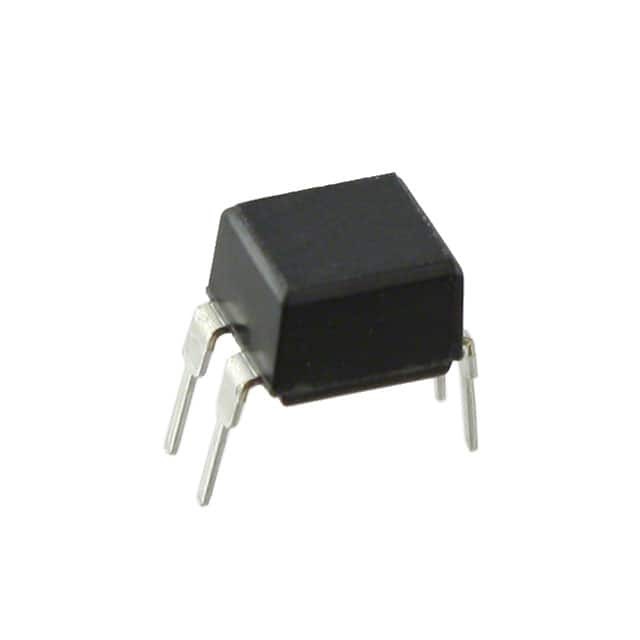

PC814X1

SKU: 35055

Manufacturer: Sharp

Optocoupler AC-IN 1-CH Transistor DC-OUT 4-Pin PDIP Sleeve

1300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Supplier Unconfirmed
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Output Type	DC
Input Type	AC
Output Device	Transistor
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	5000
Operating Temperature-Min	-30
Operating Temperature-Max	100
Maximum Forward Voltage (V)	1.4
Collector-Emitter Voltage-Max (V)	80
Maximum Current Transfer Ratio (%)	300
Standard	UL
Maximum Collector Current (mA)	50
Maximum Collector-Emitter Saturation Voltage (mV)	200
Maximum Power Dissipation (mW)	200
Maximum Reverse Voltage (V)	6
Typical Forward Voltage (V)	1.2
Maximum Rise Time (us)	18
Maximum Fall Time (us)	18
Maximum Forward Current (mA)	50
Packing Method	Sleeve
Minimum Current Transfer Ratio (%)	20
Current Transfer Ratio Test Current (mA)	1
Typical Rise Time (us)	4
Typical Fall Time (us)	3
Standard Package Method	DIP
Pin Count	4
Original Package	PDIP
Terminal Form	Through Hole
Package Height	3.5
Package Length	4.58
Package Width	6.5
PCB changed	4
