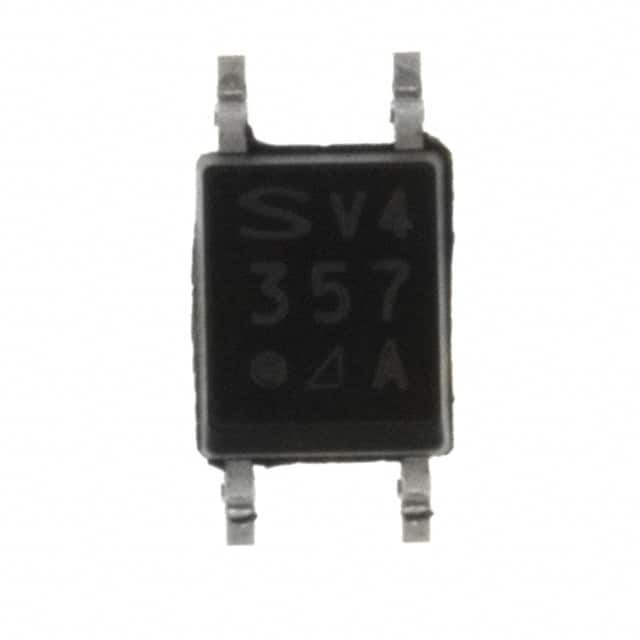

PC357N1T

SKU: 119968

Manufacturer: Sharp

Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin Mini-Flat T/R

1080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Output Type	DC
Input Type	DC
Output Device	Transistor
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	3750
Operating Temperature-Min	-30
Operating Temperature-Max	100
Maximum Forward Voltage (V)	1.4
Collector-Emitter Voltage-Max (V)	80
Maximum Current Transfer Ratio (%)	600
Standard	UL
Maximum Collector Current (mA)	50
Maximum Collector-Emitter Saturation Voltage (mV)	200
Maximum Power Dissipation (mW)	170
Maximum Reverse Voltage (V)	6
Typical Forward Voltage (V)	1.2
Maximum Rise Time (us)	18
Maximum Fall Time (us)	18
Maximum Forward Current (mA)	50
Packing Method	Tape and Reel
Minimum Current Transfer Ratio (%)	50
Current Transfer Ratio Test Current (mA)	5
Typical Rise Time (us)	4
Typical Fall Time (us)	3
Standard Package Method	SOIC
Pin Count	4
Original Package	Mini-Flat
Terminal Form	Surface Mount
Package Height	2.6
Package Length	3.6
Package Width	4.4
PCB changed	4
