JANTX1N5618US

SKU: 115316

Manufacturer: Sensitron Semiconductor

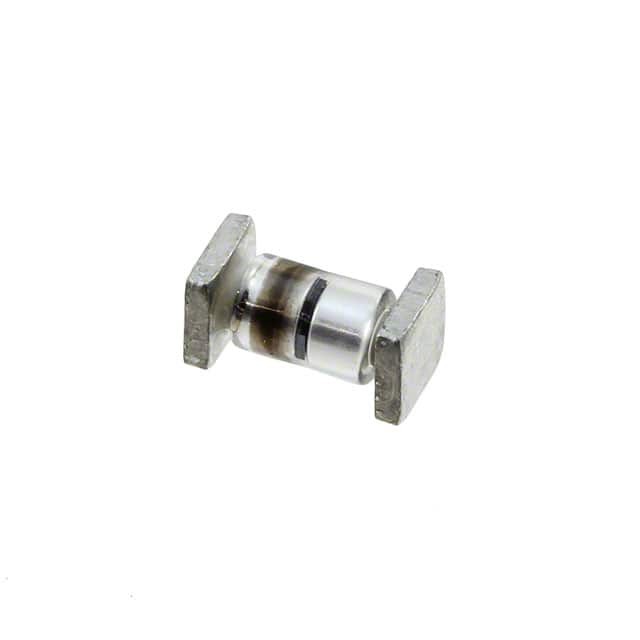

Rectifier Diode Switching 600V 1A 2000ns 2-Pin MELF-1

1770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Switching Diode
Configuration	Single
Peak Reverse Repetitive Voltage (V)	600
Maximum Continuous Forward Current (A)	1@Ta=55C
Peak Non-Repetitive Surge Current (A)	30
Peak Forward Voltage (V)	1.3@3A
Peak Reverse Current (uA)	0.5
Peak Reverse Recovery Time (ns)	2000
Operating Temperature-Min	-65
Operating Temperature-Max	175
Supplier Temperature Grade	Military
Original Package	MELF-1
Pin Count	2
Standard Package Method	MELF
Terminal Form	Surface Mount
Package Height	3.8(Max)
Package Length	5.9(Max)
Package Width	3.8(Max)
